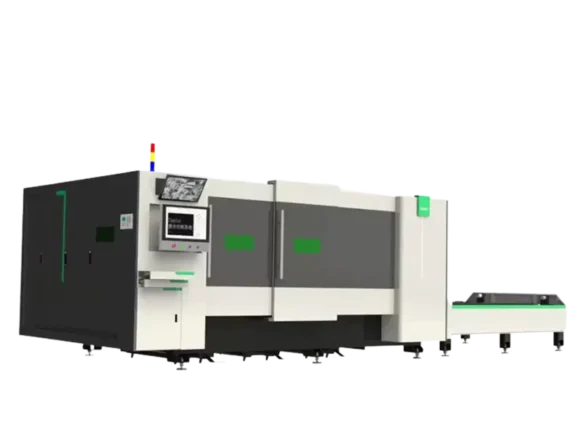

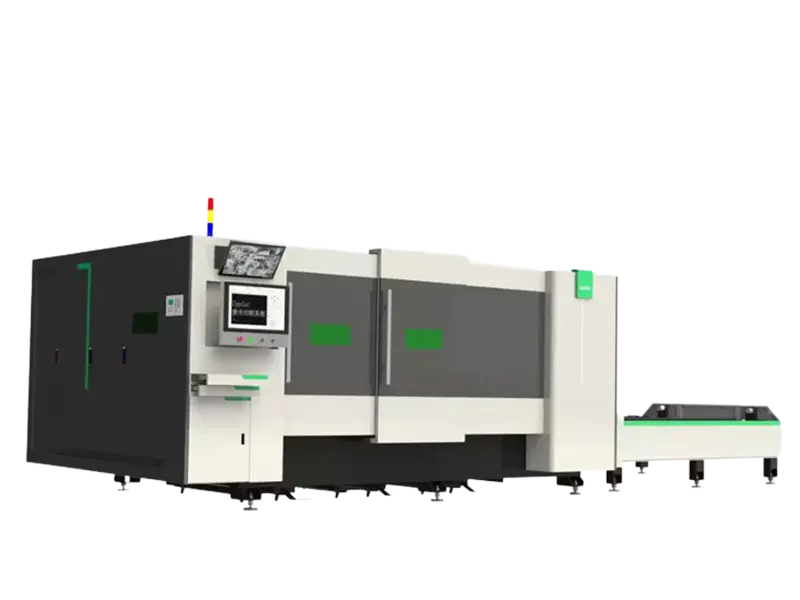

The Fly Speed Fiber Laser Cutting Machine by BesCutter delivers high-performance industrial cutting in a fully enclosed design with an automatic shuttle table, ensuring maximum efficiency and precision. Engineered for large-scale production, this machine offers unmatched cutting speed and power, making it ideal for high-volume metal processing.
The BesCutter Fly Speed is our high-power industrial fiber laser cutting solution, built for speed, efficiency, and automation. With laser power options from 1,500W to 20,000W, this machine offers exceptional cutting capabilities for large-scale metal fabrication.
Its fully enclosed design ensures safety and dust control, while the parallel auto-exchange shuttle table optimizes workflow and productivity. Equipped with a high-speed servo drive system, aviation aluminum gantry, and precision laser head, the Fly Speed guarantees fast, smooth, and accurate cutting. Additionally, BesCutter’s US-based support ensures quick assistance and technical support whenever needed.
Power That Fits Your Needs
Choose from 1,500W to 20,000W laser power depending on your production requirements. Contact a team member for a free consultation.
Additional Features
| Optional Working Area | 8.2′ x 20′ (6000 x 2500 mm) |
| Optional Laser Wattage | 6kw to 15kw |
| X, Y Two-axis coordinated positioning speed (MAX) | 140 m/min |
| Positioning acceleration (MAX) | 1.4 G |
| Positioning accuracy | ±0.05 mm/m |
| Re-positioning accuracy | ±0.02 mm |
| Laser generator | MAX or Han’s photonics |
| Laser head | Raytools or BOCI |
| Controlling System | CypCut (Beckhoff optional) |
| X-Y-Z Servo Motors | X-2x2900W; Y- 1x850W; Z-1x750W |
| Machine Weight | 37700 lbs (17.1 Ton) |
| Dimensions | 50.85′ x 13.77′ x 6.88′ (15500 x 4200 x 2100 mm) |
