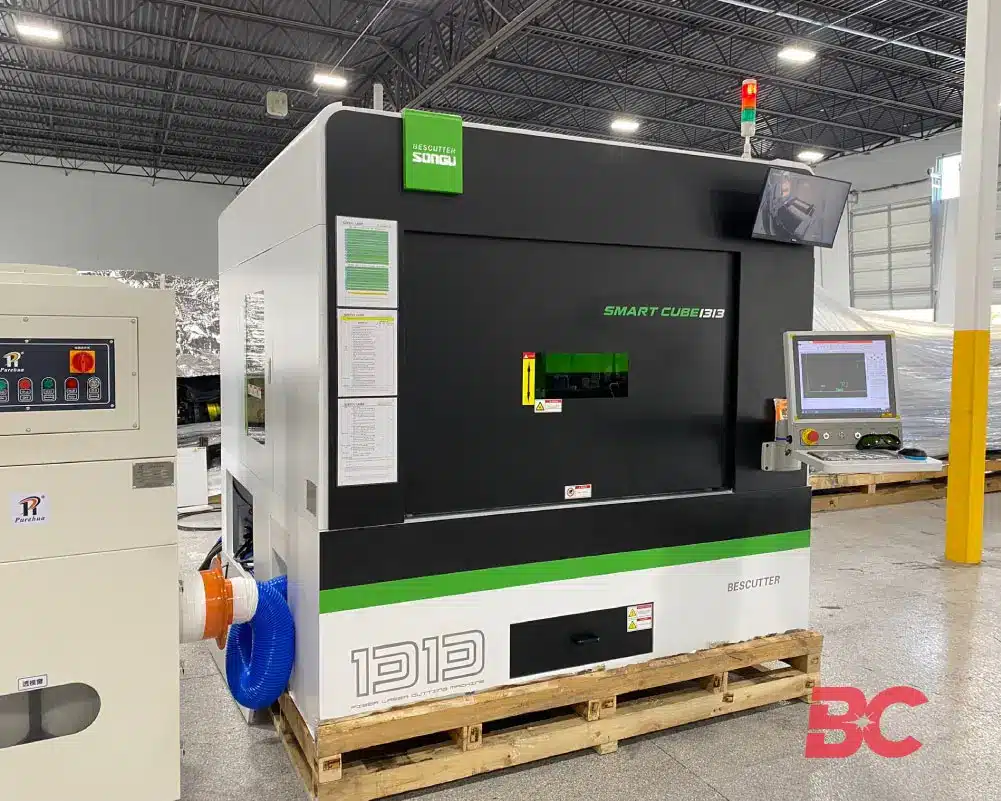

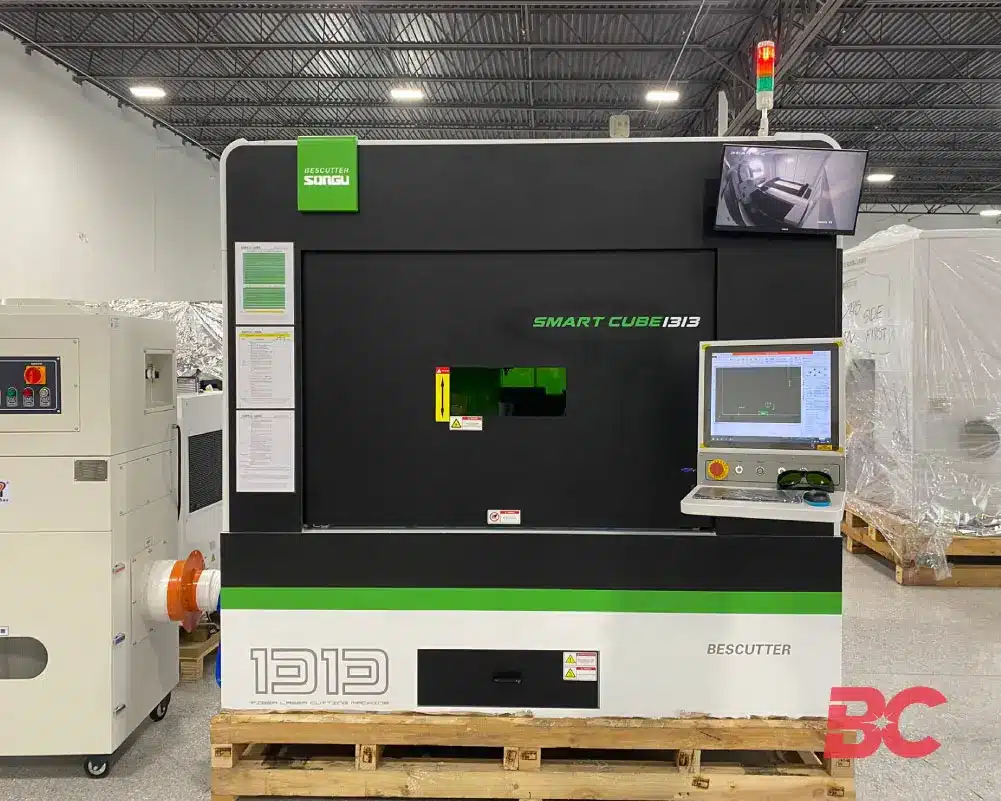

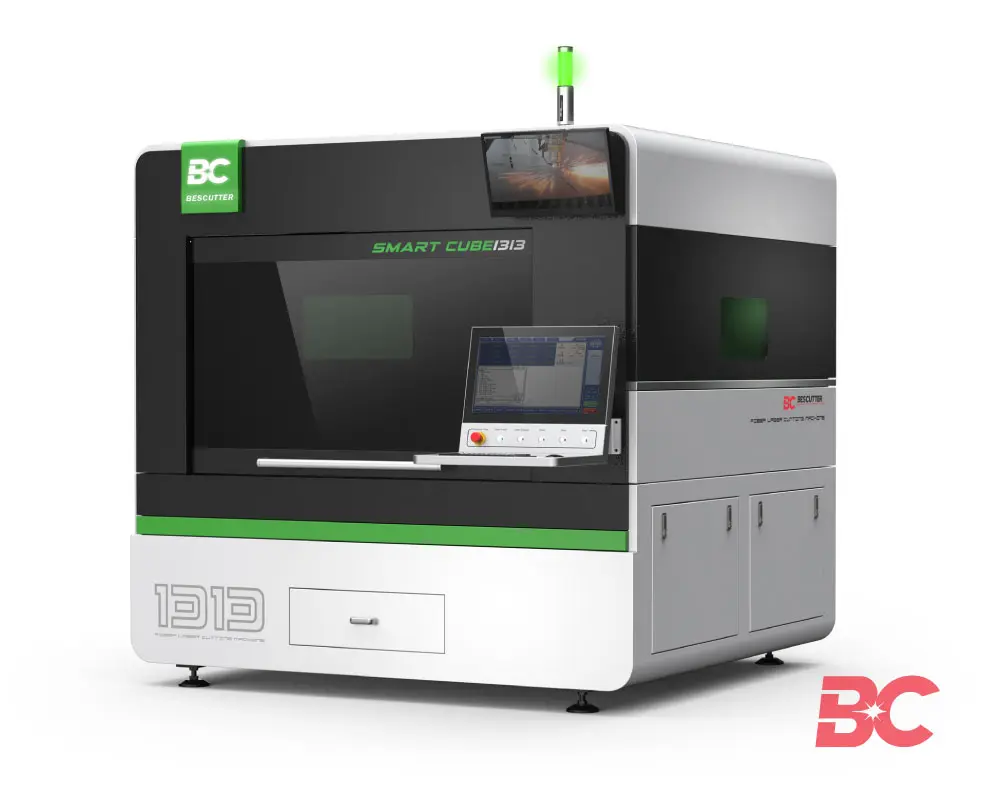

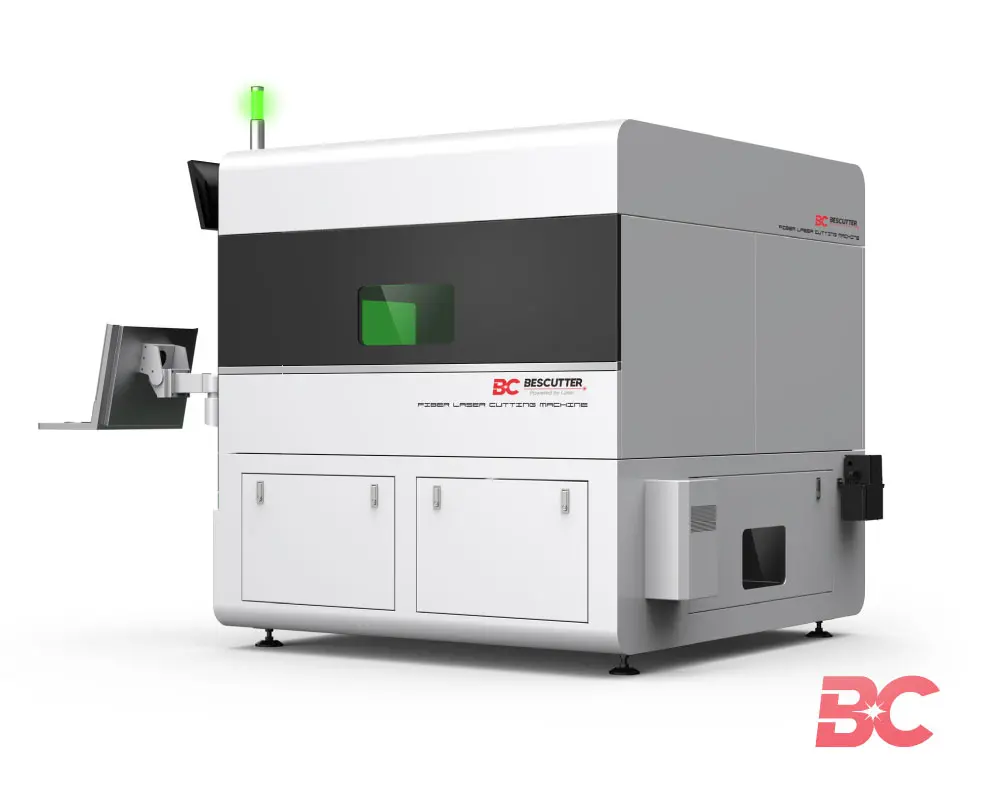

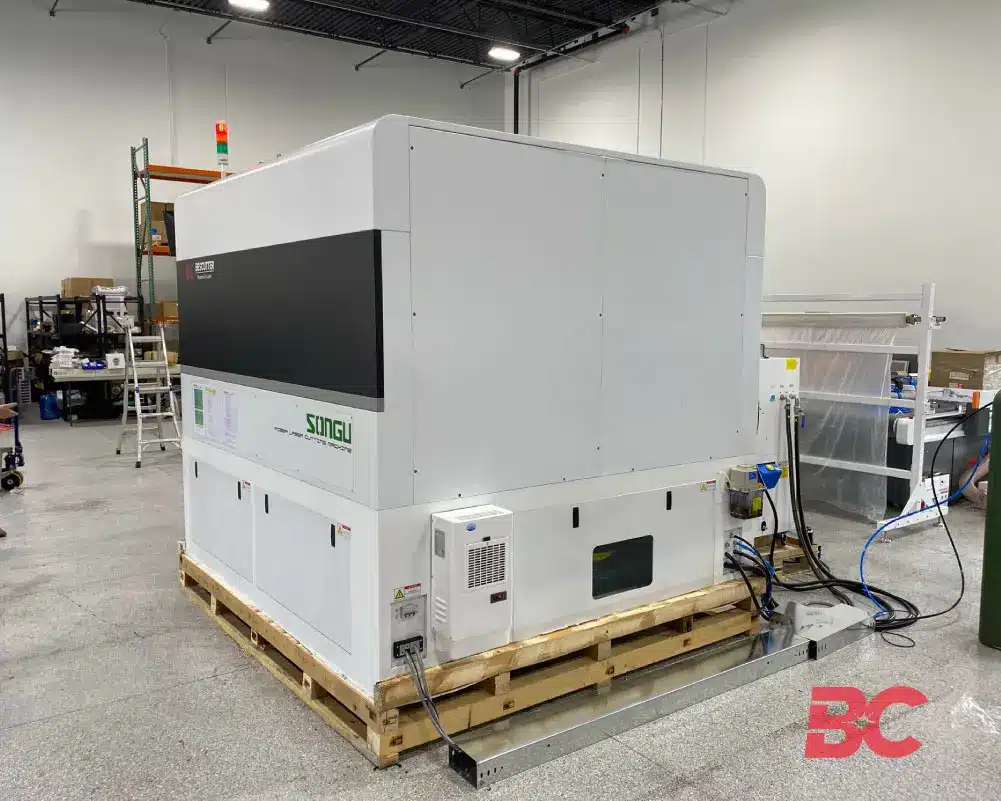

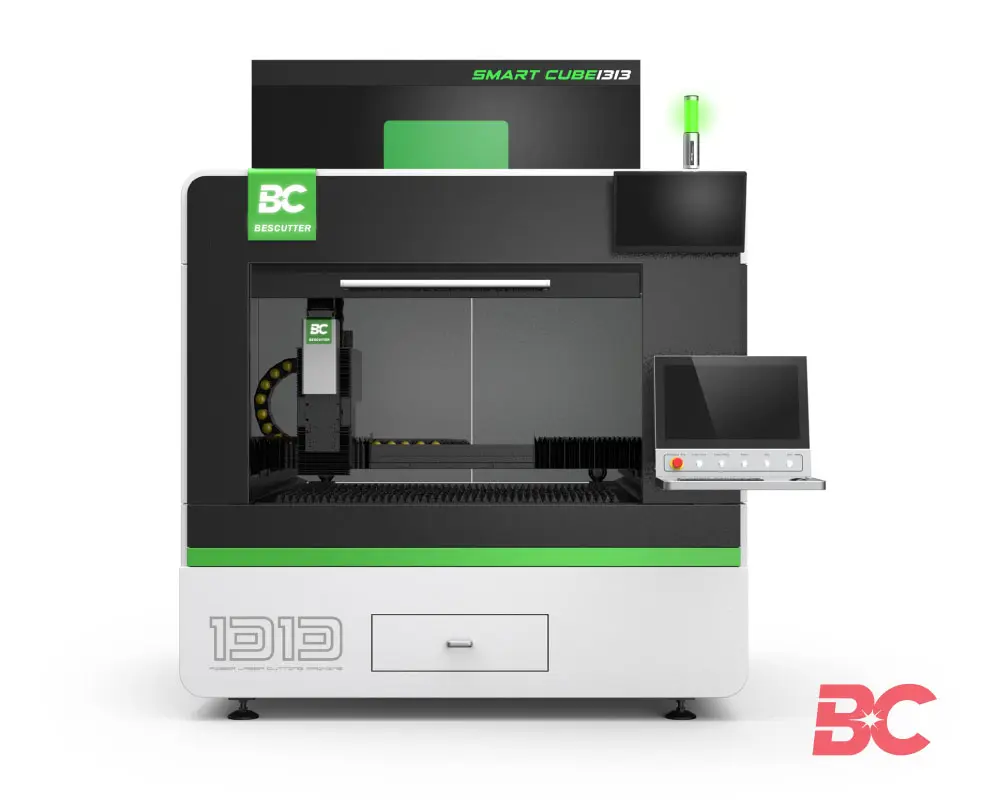

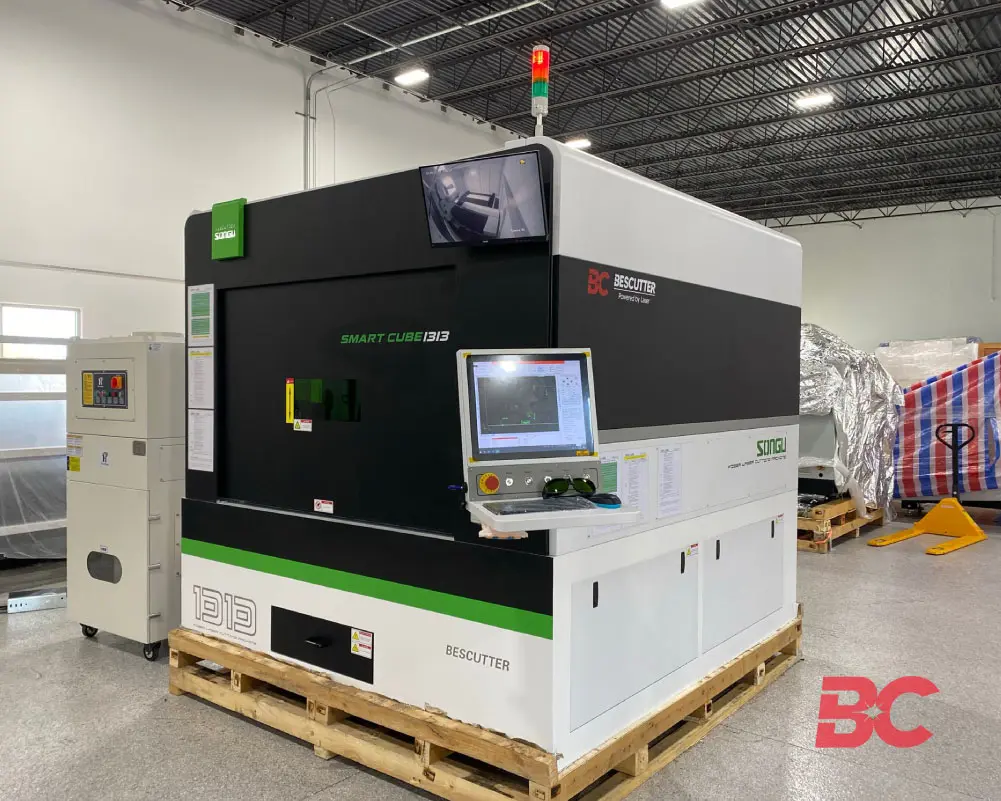

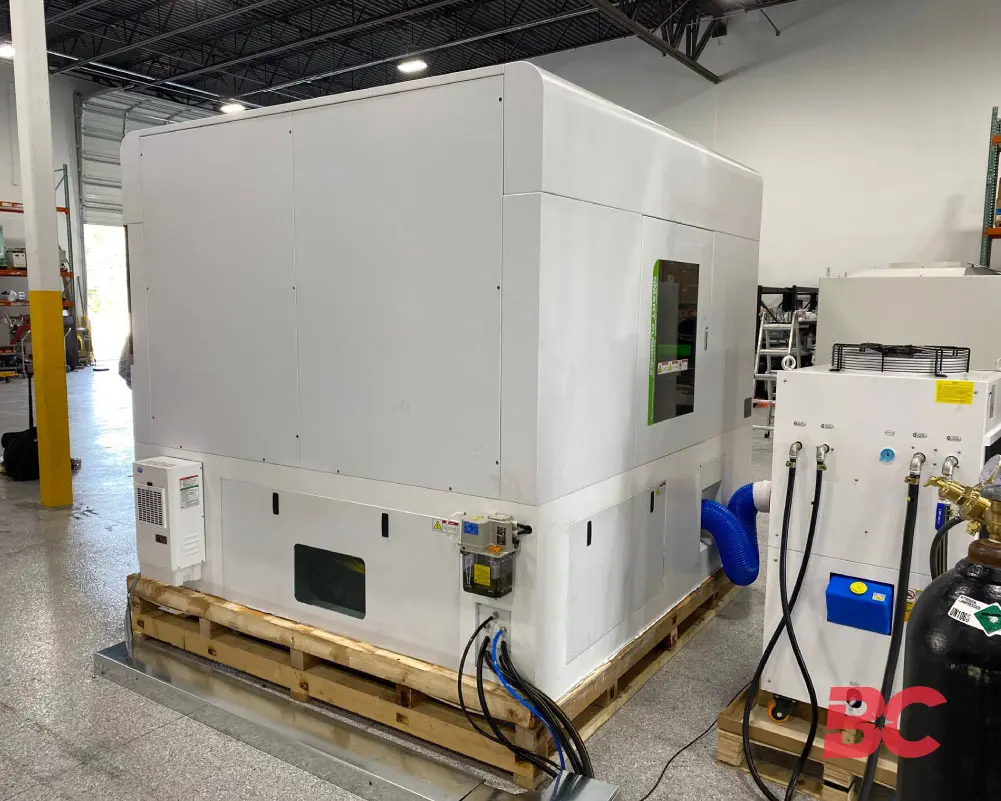

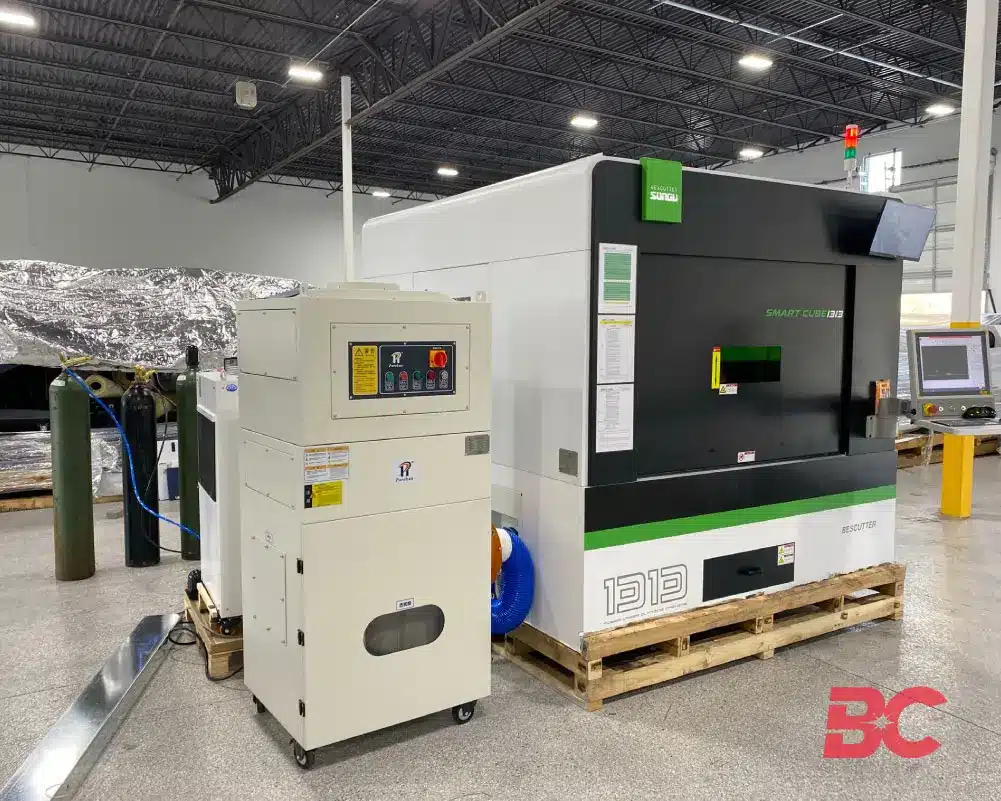

The Smart Cube Fiber Laser Cutting Machine by BesCutter delivers industrial-grade performance in a compact, fully enclosed design, making it an ideal choice for shops with limited space that require high-precision metal sheet cutting. Designed for efficiency, safety, and productivity, the Smart Cube allows businesses to maximize workflow while maintaining exceptional cutting capabilities.
The BesCutter Smart Cube is our compact fiber laser cutting series, built for precision, safety, and efficiency. This fully enclosed machine is ideal for shops that require high-accuracy cutting in a space-saving design. With laser power options ranging from 1500W to 6000W, the Smart Cube delivers fast, reliable, and efficient metal cutting for a wide range of industrial applications.

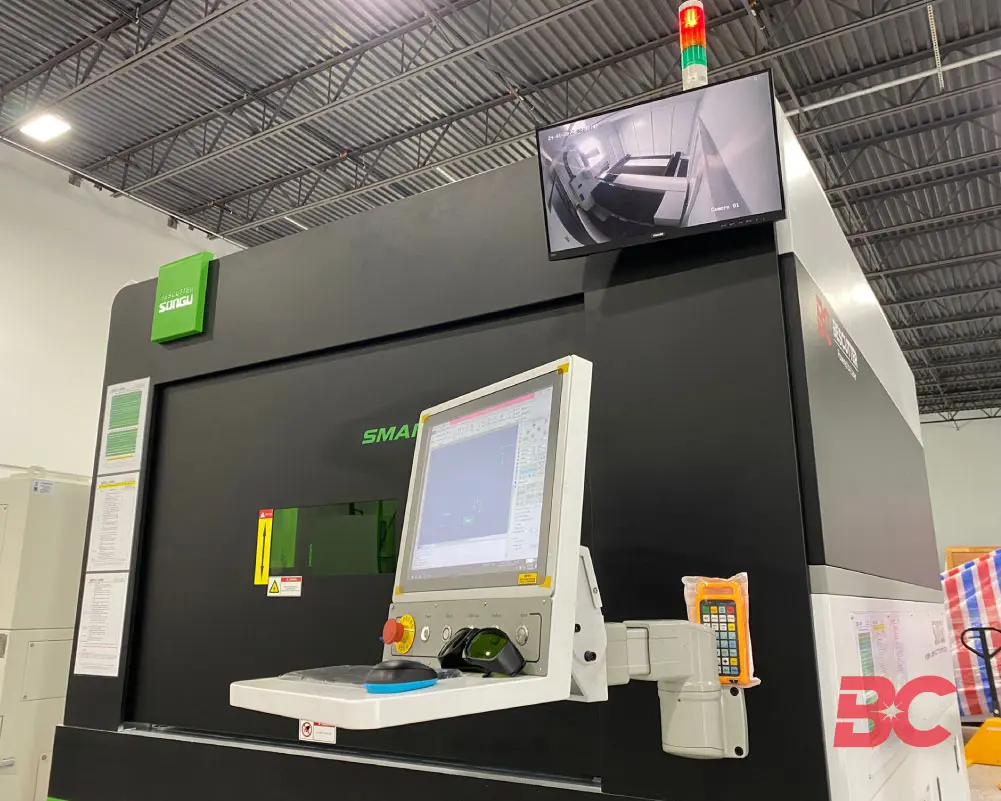

The machine features an integrated CCD camera for real-time monitoring, ensuring consistent precision and quality control. Its rigid welded frame and aluminum gantry provide excellent stability and durability, while the FSCUT 2000S control system enables smooth and efficient operation. Additionally, BesCutter’s US-based support ensures quick troubleshooting and dependable assistance whenever needed.
Power That Fits Your Needs

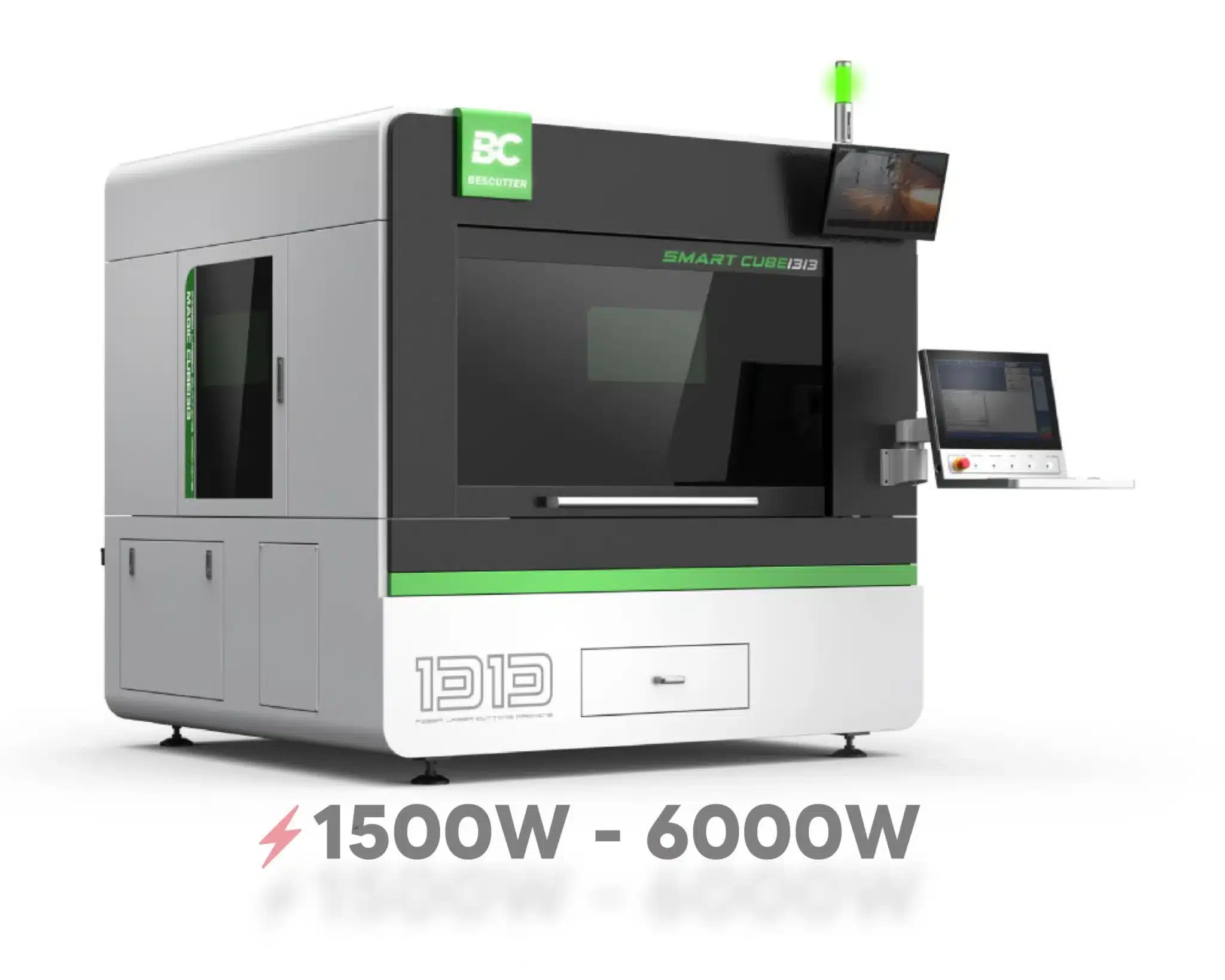

Choose from 1500W to 6000W laser power depending on your production requirements. Contact our team for a free consultation.
Additional Features
| Specification Item | Detail |
|---|---|
| Laser Power | 1500W – 6000W |
| Working Area | 51” W x 51” L (1,300 mm x 1,300 mm) |
| Overall Dimensions | 85” L x 91” W x 83”H (2150x2300x2120 mm) |
| Weight | 3,300 lbs (1,500 kg) |
| Positioning Accuracy | ±0.05 mm/m |
| Repeated Positioning Accuracy | ±0.02 mm |
| Maximum Speed | 55”/s (84m/min) |
| X-Y-Z Servo Motors | Y 2 x 1,500W – X 1 x 1,000W – Z 1 x 400W |
| Electromechanical | SCHNEIDER, SMC and etc |
| Controlling System | CYPCUT BCS 100 |
| X-Axis Travel | 51” (1,300 mm) |
| Y-Axis Travel | 51” (1,300 mm) |
| Z-Axis Travel | 4” (100 mm) |
| Laser Resonator | Max & Han´s |
| Laser Head | RAYTOOLS |
| Lubrication System | Automatic Lubrication (Lubrication reminder available) |
