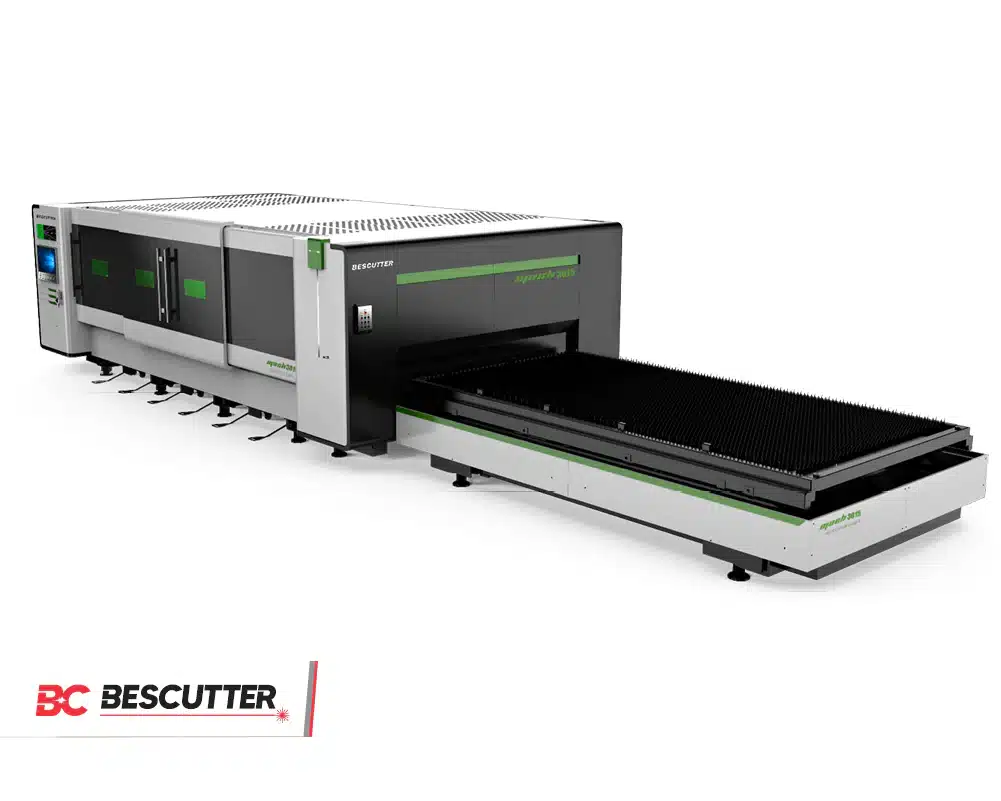

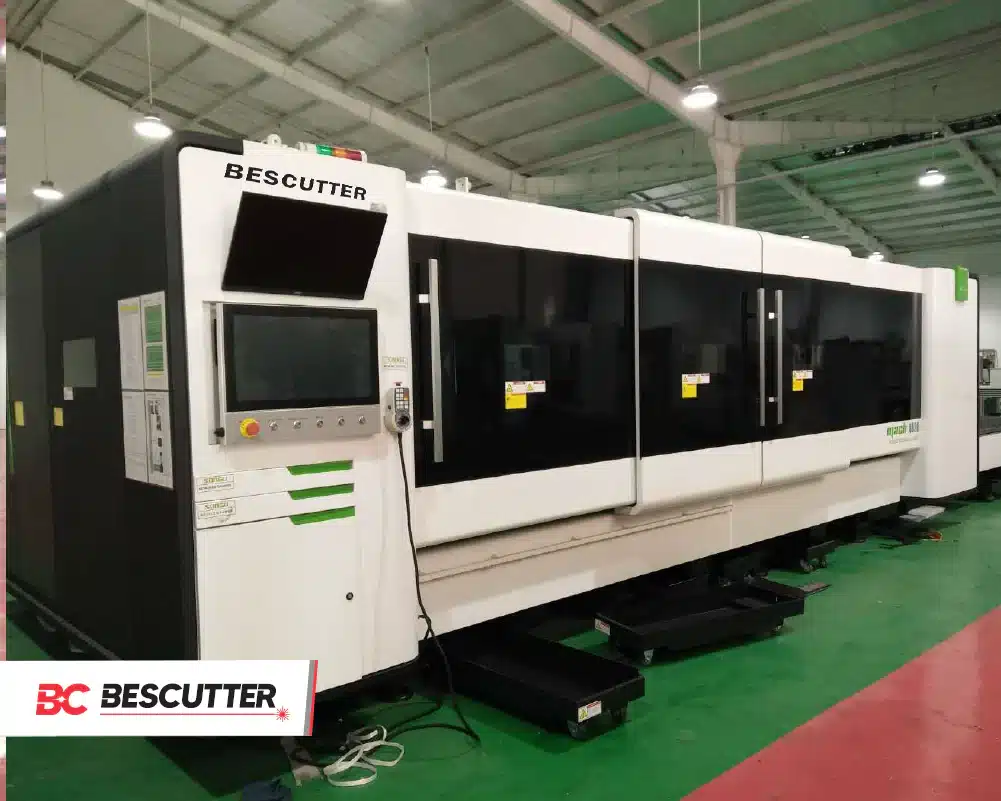

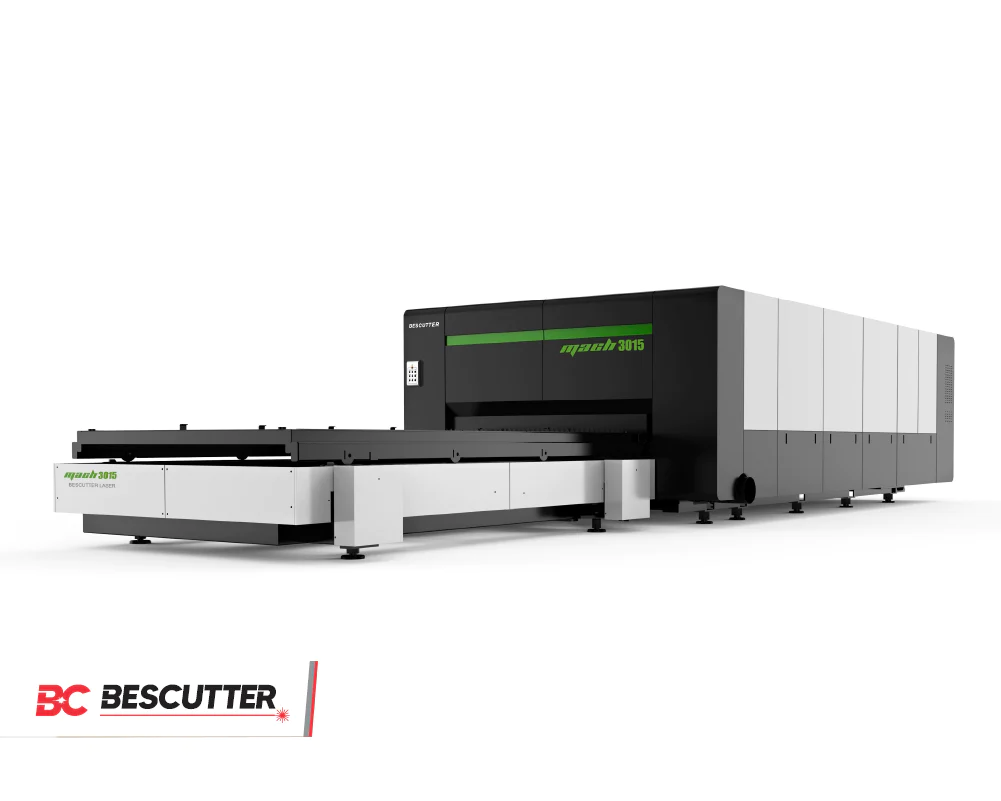

The Mach Speed Fiber Laser Cutting Machine by BesCutter delivers high-performance industrial cutting with a fully enclosed design and hydraulic auto-exchange shuttle table, ensuring maximum efficiency and precision. Engineered for large-scale production, this machine offers unmatched cutting speed, power, and automation, making it ideal for high-volume metal processing.
The BesCutter Mach Speed series delivers uncompromising cutting performance for industrial applications. Featuring a large 5′ x 10′ working area, fiber laser power ranging from 6000W to 20000W, and a robust build, the Mach Speed is designed to handle demanding metal cutting tasks with ease.
Unleash Unmatched Cutting Power
Engineered for Precision and Efficiency
Built for Industrial Durability
| Specification Item | Detail |
|---|---|
| Working Area | 61″ x 120″ (3050 x 1550 mm) Optional 157″ x 78.7″/ 236″ x 98.4″/ 315″ x 98.4″ |
| X,Y,Z-axis Travel | 61″ (3050 mm) / 120″ (1550 mm) / 3.93″ (100 mm) |
| X, Y Two-axis coordinated positioning speed (MAX) | 2.4 G |
| Positioning acceleration (MAX) | <0.373 mrad |
| Positioning accuracy | ±0.05 mm/m |
| Re-positioning accuracy | ±0.02 mm |
| MMaximum load weight | 1962 lb (890 kg) |
| Laser resonator | Hans Photonics or Max Photonics |
| Laser head | Raytools or BOCI |
| X-Y-Z Servo Motor | X-2x9700W; Y- 1x6880W ; Z-1x940W |
| Machine Weight | 28200 lbs (12800 kg) |
| Dimensions | 350″x 118″ x 87″ (8900 x 3000 x 2200 mm) |
| Laser power | 1.5kW – 20kW |
| Modulation speed | 5kHz |
| Delivery fiber core diameter | ≥50μｍ |
| Output stability | ±2% |
| Power supply | 400-460V/3P+PE@50-60Hz |
