64″ Top/Bottom De-Nibbing, White Wood Sanding, Surface Prep For Finishing
Top/bottom machine processes both the top and bottom surfaces in a single pass with 100% uniformity. Every square inch of every part is processed exactly the same over 100% of the machine width.

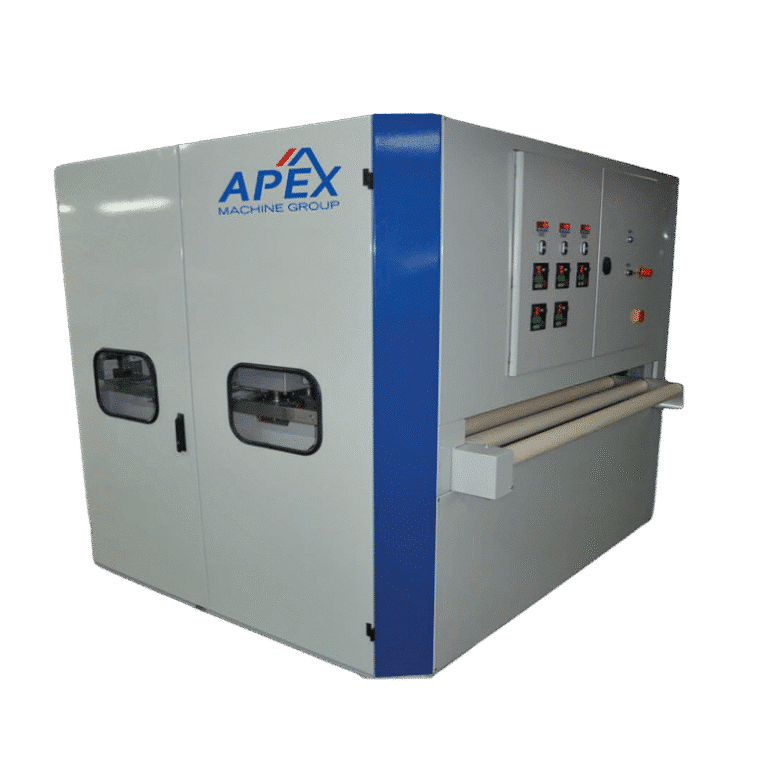

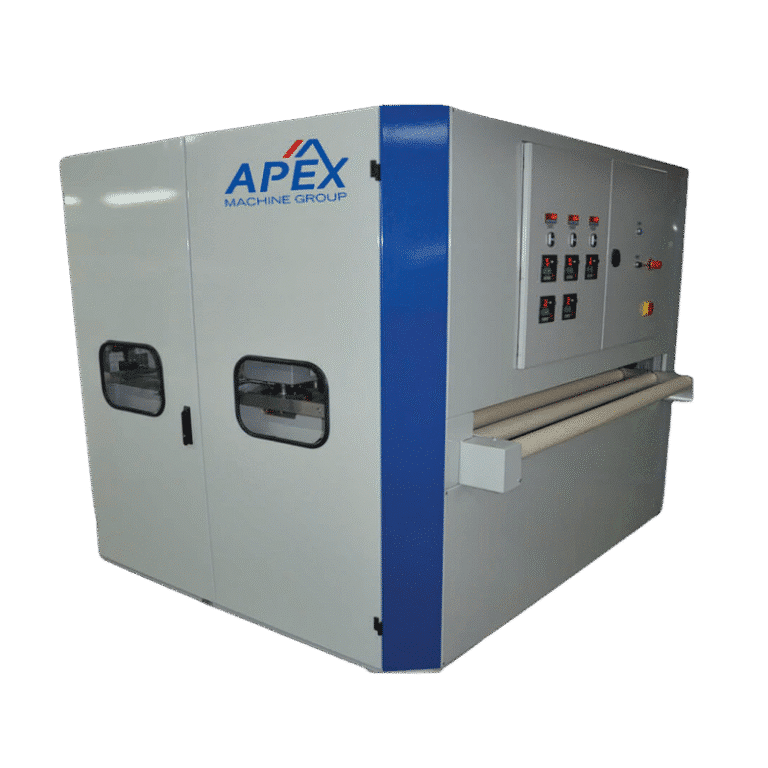

The Apex TB-1600 Top/Bottom machine processes both the top and bottom surfaces of parts in a single pass with 100% uniformity. Every square inch of every part is processed exactly the same over 100% of the machine width. It is equipped with oscillating and rotating sanding discs designed for effective deburring, edge radius, laser oxide removal, weld-point clean-up and surface preparation for powder coating, painting and e-coating. The machine has two single row disc stations on top, with each top disc station consisting of twelve 150 mm (6″) discs. There are two single row disc stations on the bottom, with each bottom disc station consisting of twelve 150 mm (6″) discs for processing the bottom of parts.
Belt Width: 40″ to 100″
Thickness of Workpiece: Minimum 0mm to Maximum 80mm
Motor for Disc Station Rotation 2.2kW: 100-700 rpm
Motor for Disc Station Oscillation 0.37kW: 40 rpm, oscillation movement 100mm
Number of Discs: 12 discs x 2 rows (top) and 12 discs x 2 rows (bottom)
Diameter of Sanding Discs: 150 mm (6″); 250 mm (10″) available
Feed Speed: 3-25 feet per minute
Dust Collection Ports: Three (3) 150mm ports per disc station
Dust Collection Requirements: Minimum 6,500 CFM
Machine Weight: 6,050 lbs.
Machine Dimensions: 84″ L x 90″ W x 80″ H
