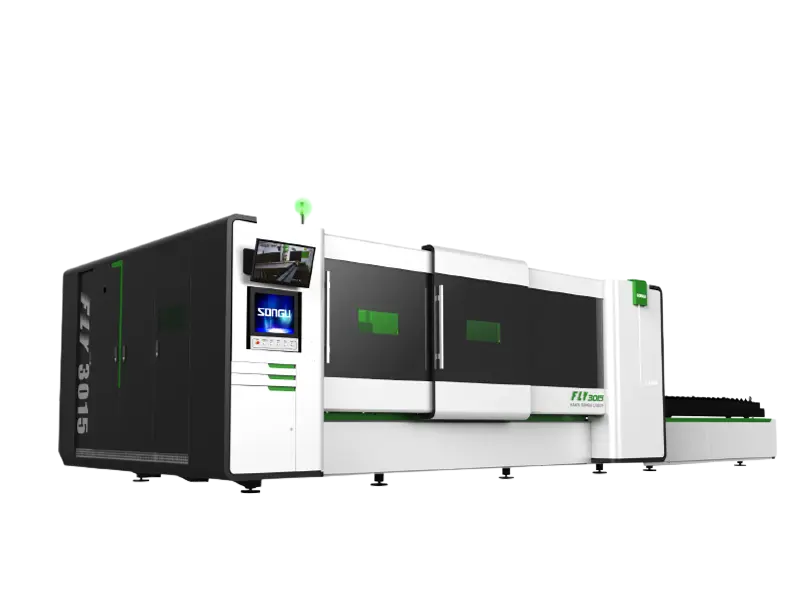

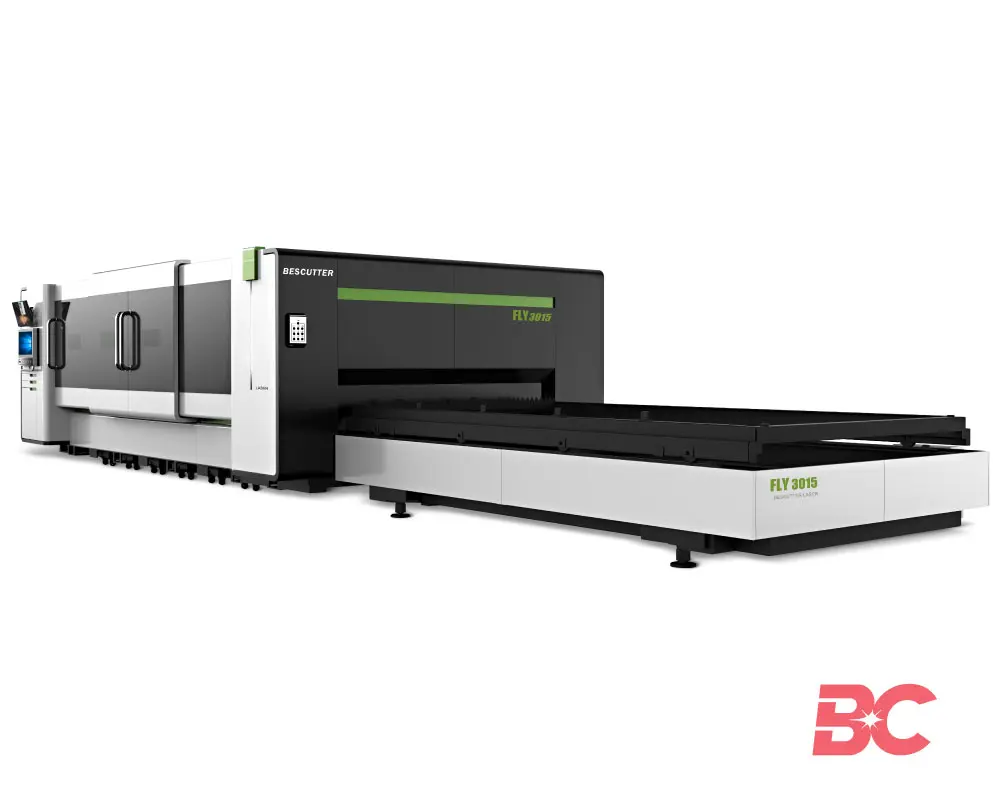

The Fly Speed Fiber Laser Cutting Machine by BesCutter delivers high-performance industrial cutting in a fully enclosed design with an automatic shuttle table, ensuring maximum efficiency and precision. Engineered for large-scale production, this machine offers unmatched cutting speed and power, making it ideal for high-volume metal processing.
The BesCutter Fly Speed is a high-power industrial fiber laser cutting solution built for speed, efficiency, and automation. With laser power options from 1,500W to 20,000W, this machine delivers exceptional cutting performance for large-scale metal fabrication.

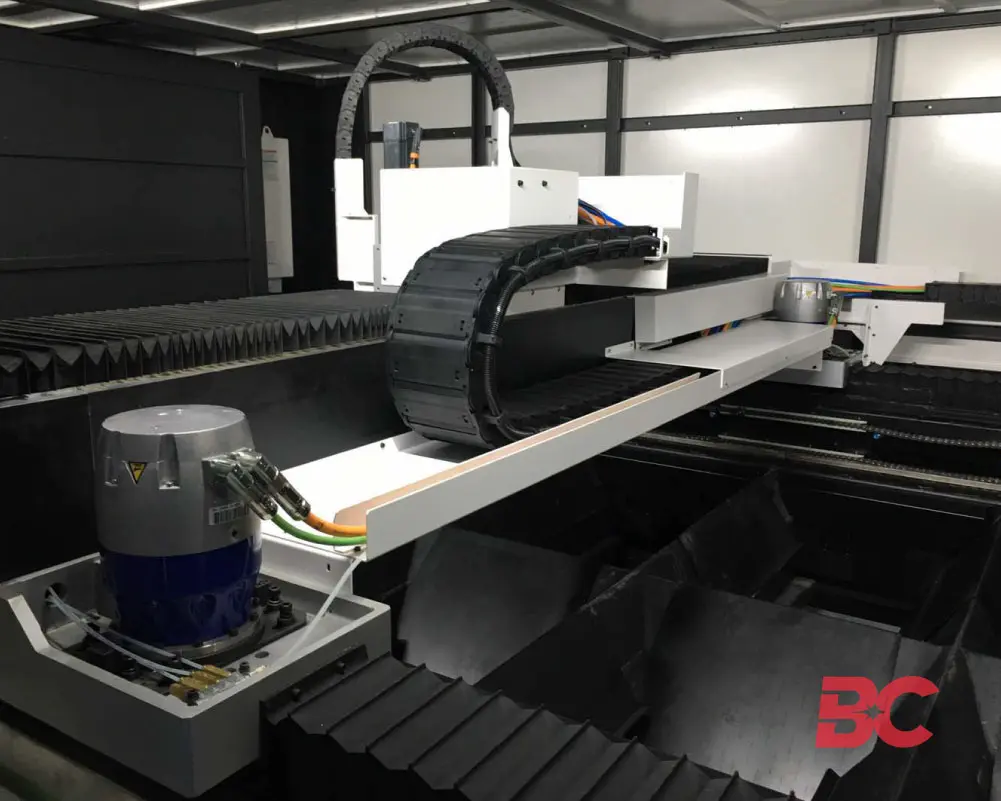

Its fully enclosed design ensures safety and effective dust control, while the parallel auto-exchange shuttle table maximizes workflow and productivity. Equipped with a high-speed servo drive system, aviation aluminum gantry, and precision laser head, the Fly Speed provides fast, smooth, and accurate cutting. BesCutter’s US-based support also ensures reliable assistance and quick technical support whenever needed.
Power That Fits Your Needs
Choose from 1,500W to 20,000W laser power depending on your production requirements. Contact our team for a free consultation.
Additional Features
| Specification Item | Detail |
|---|---|
| Standard Working Area | 10′ x 5′ (3050 x 1550 mm) |
| Optional Working Area | 13′ x 6.5′ (4,000mm x 2,000mm) 20′ x 6.5′ (6,100mm x 2,000mm) 26′ x 6.5′ (8,000mm x 2,000mm) |
| Laser Power | 1,500W – 20,000W |
| X,Y,Z Axis Distance | 61″ (3050 mm)/120″ (1550 mm)/3.93″ (100 mm) |
| X,Y Two_axis Coordinated Positioning Speed (Max) | 140 m/min |
| Positioning Acceleration Speed (Max) | 1.5 G |
| Positioning Accuracy | ±0.05 mm/m |
| Re-Positioning Accuracy | ±0.02 mm |
| Maximum Load Weight | 1543 lbs |
| Dimensions | 350″x 118″ x 83″ (8900mm x 3000mm x 2100mm) |
| Laser Head | Raytools or BOCI |
| Controlling System | CypCut (Beckhoff optional) |
| X-Y-Z Servo Motors | X-2x2900W; Y- 1x850W ; Z-1x750W |
| Machine Weight | 20945 lbs (9500 kg) |
