The BesCutter Space Saver is our compact, enclosed fiber laser cutting solution, ideal for workshops with limited space while maintaining industrial-grade performance. With laser power options from 1500W to 12000W, this machine delivers high-precision cutting across various materials.
The BesCutter Space Saver is a compact, enclosed fiber laser cutting solution, ideal for workshops with limited space while maintaining industrial-grade performance. With laser power options from 1500W to 12000W, this machine delivers high-precision cutting across various materials, making it an excellent choice for businesses requiring efficiency and reliability in a space-saving design.

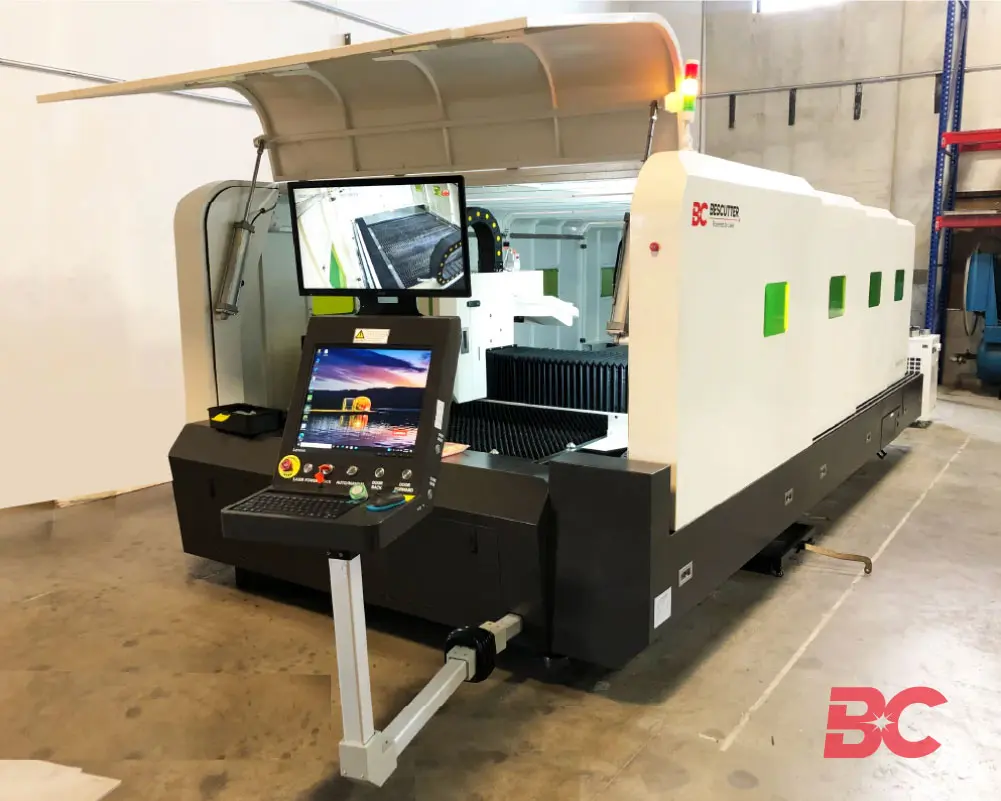

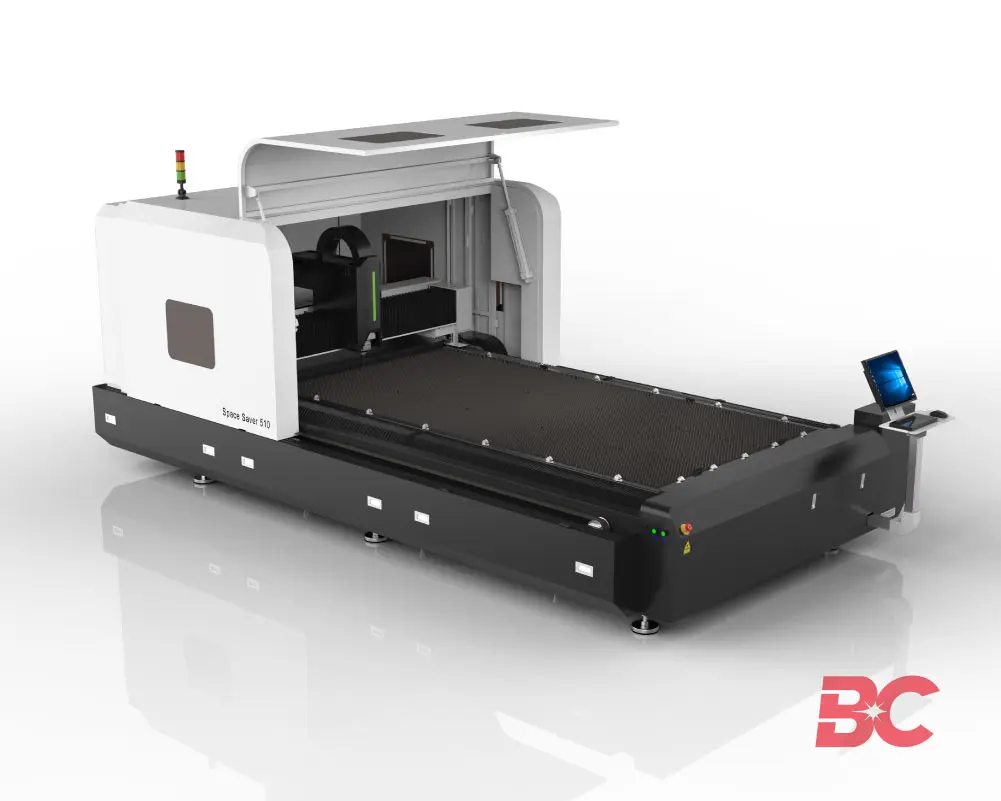

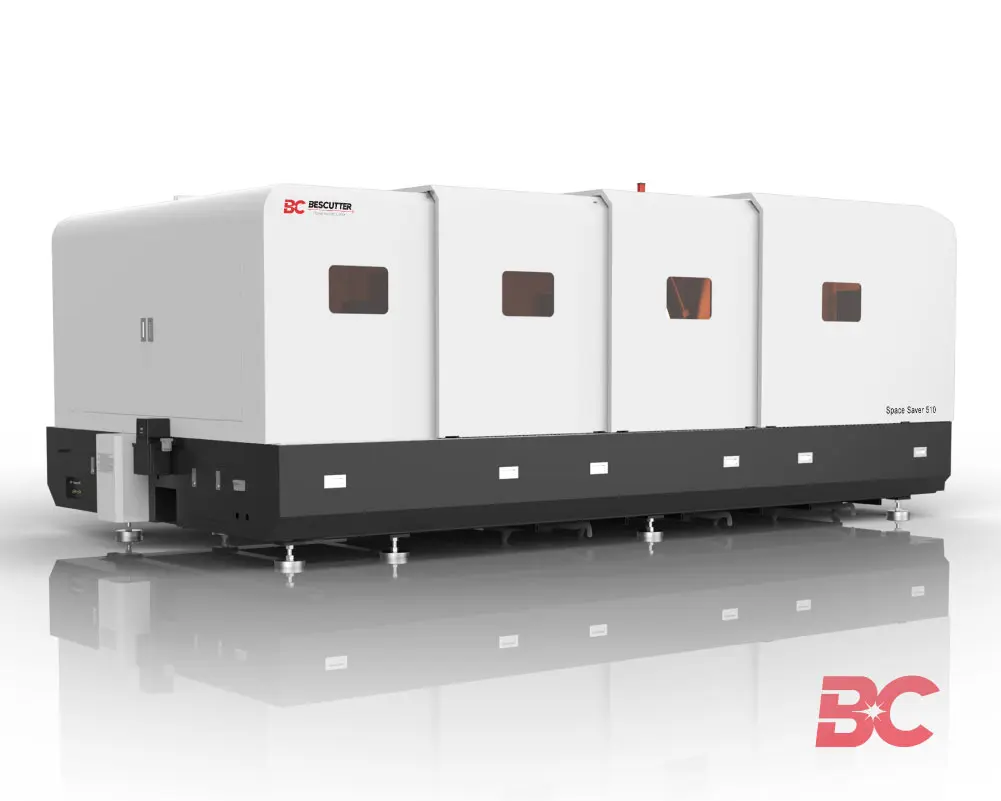

Its fully enclosed structure with a retractable housing ensures maximum safety, while the high-rigidity enhanced aluminum gantry and double rack & pinion drive system provide exceptional stability and accuracy. Equipped with advanced CypCut control software and a user-friendly hand controller, the Space Saver is designed for fast, precise, and efficient production.

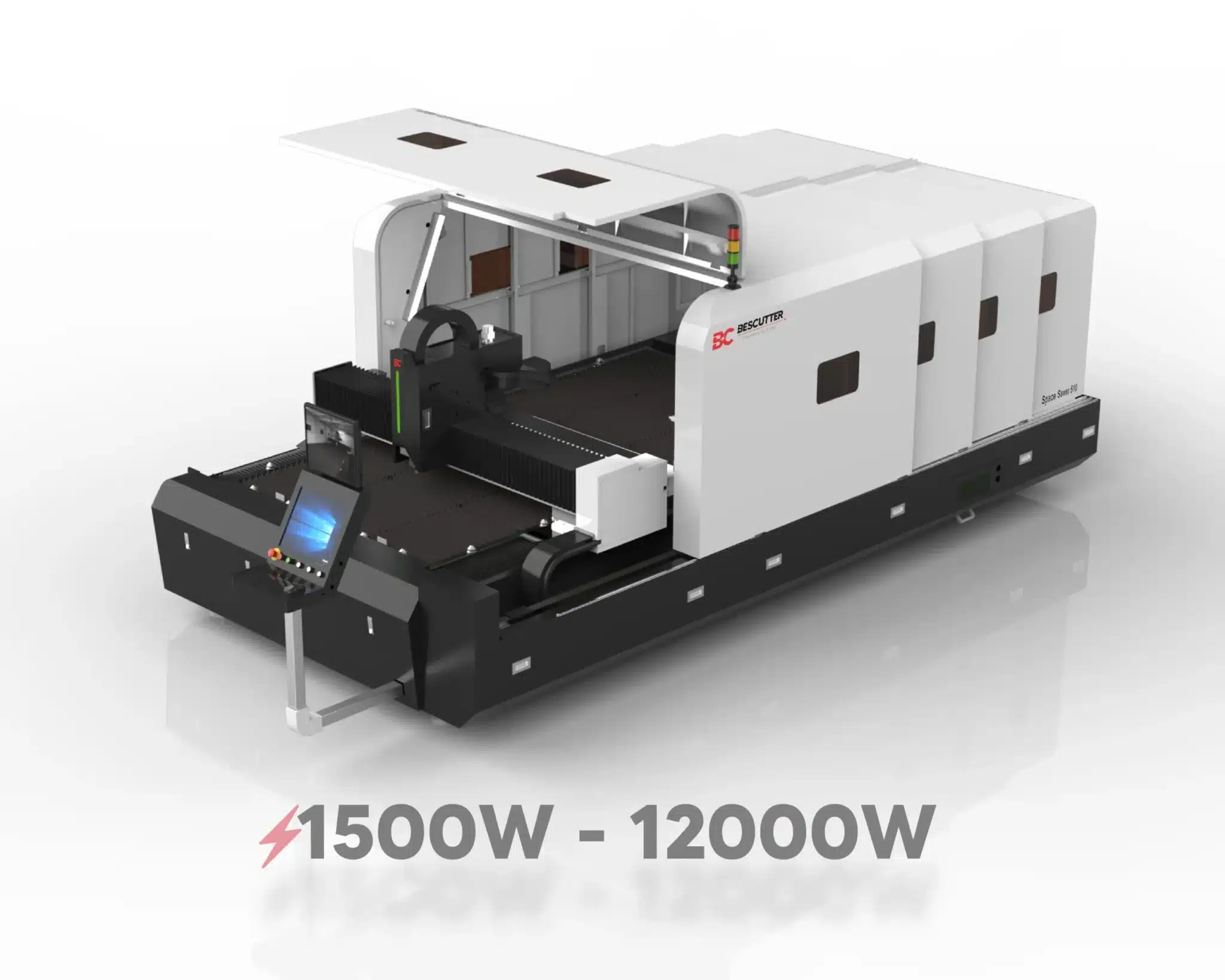

Power that fits your needs:
Choose from 1500W to 12000W laser power based on your production requirements. Contact a team member for a free consultation.
Additional Features:
With high-speed transmission and a powerful bus servo motor, the Space Saver series delivers excellent dynamic performance, boosting productivity and overall processing efficiency.
| Specification Item | Detail |
|---|---|
| Laser Power | 3000W – 12000W |
| Working Area | 60″ x 120 ” (3000mm X 1500mm) |
| Overall Dimensions | 213″ X 106″ X 90″(5930mm X 2260mm X 2000mm) |
| Weight | 7,716 LB (3,500 KG) |
| Positioning Accuracy | ±0.05/1000 mm |
| Repeated Positioning Accuracy | ±0.07/1000 in (±0.02/1000 mm) |
| Maximum Speed | 60m / min |
| Power Supply | Three Phase 208V / 240V / 480V (Transformer Included) |
| Working Environment | Temp: 0-45℃, Humidity:80% |
| Controlling System | FsCut 2000 |
| Laser Head | Raytools or BOCI |
| Lubrication System | Optimized Autolubrication System |
Stainless laser cutting
