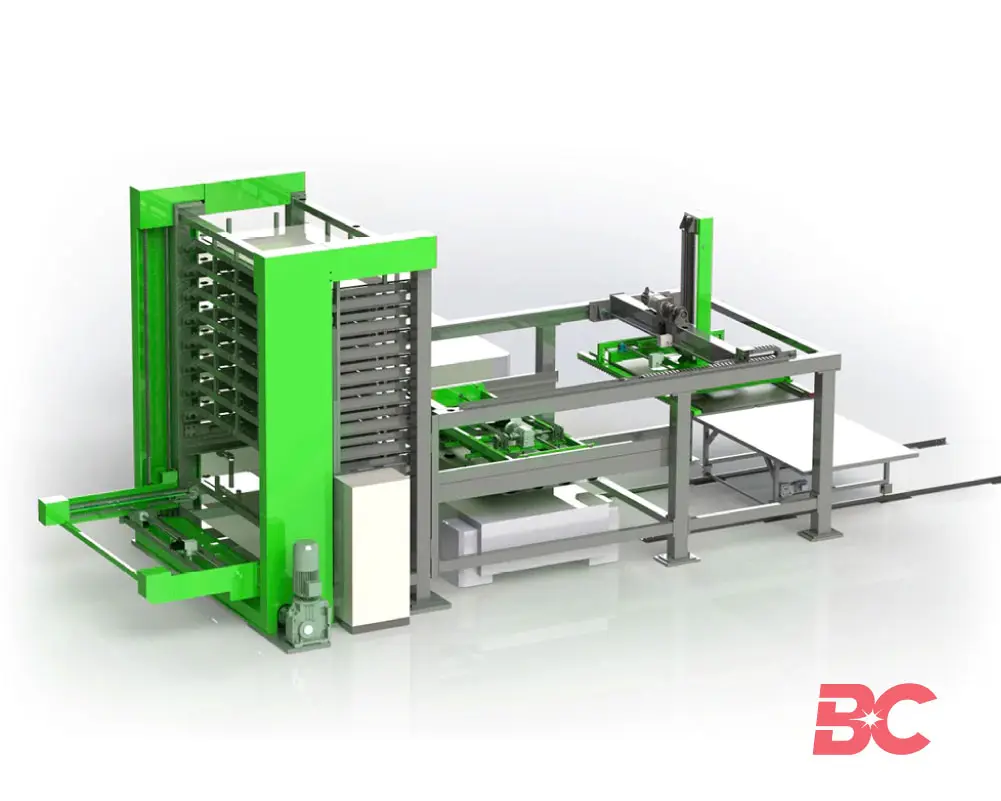

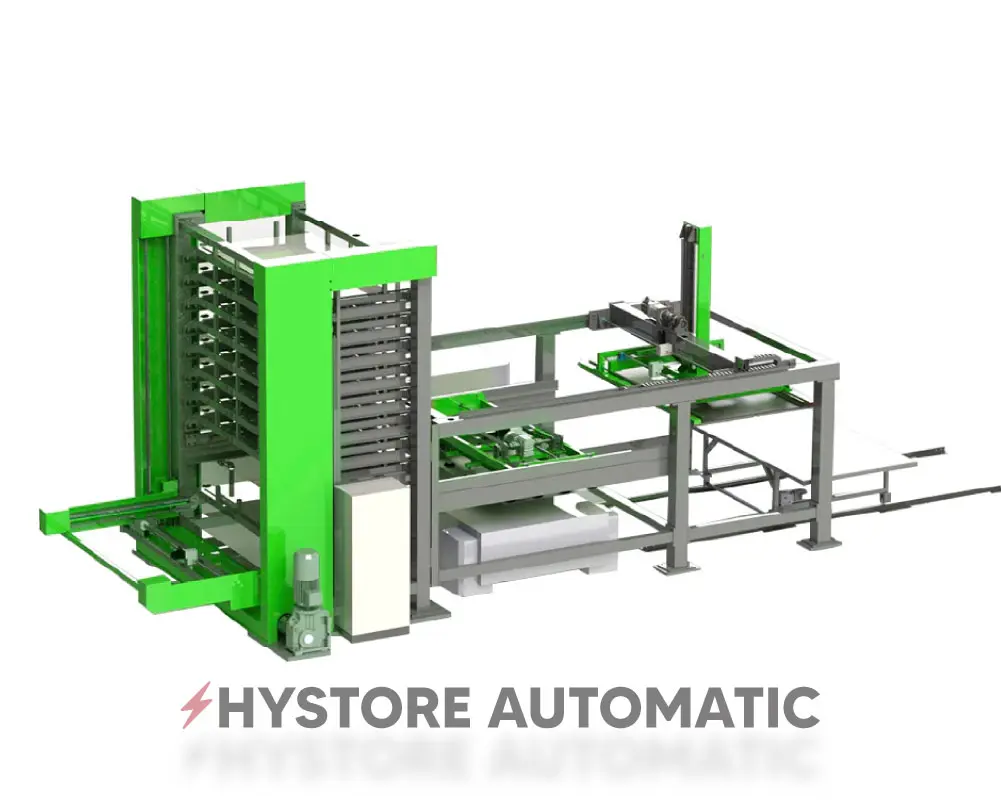

The HYSTORE Automatic Loading & Unloading System is a cutting-edge solution designed for fiber laser cutters, improving efficiency and automation in metal sheet handling. With multi-level storage capabilities and seamless integration with CNC machines, it optimizes material usage and reduces labor costs

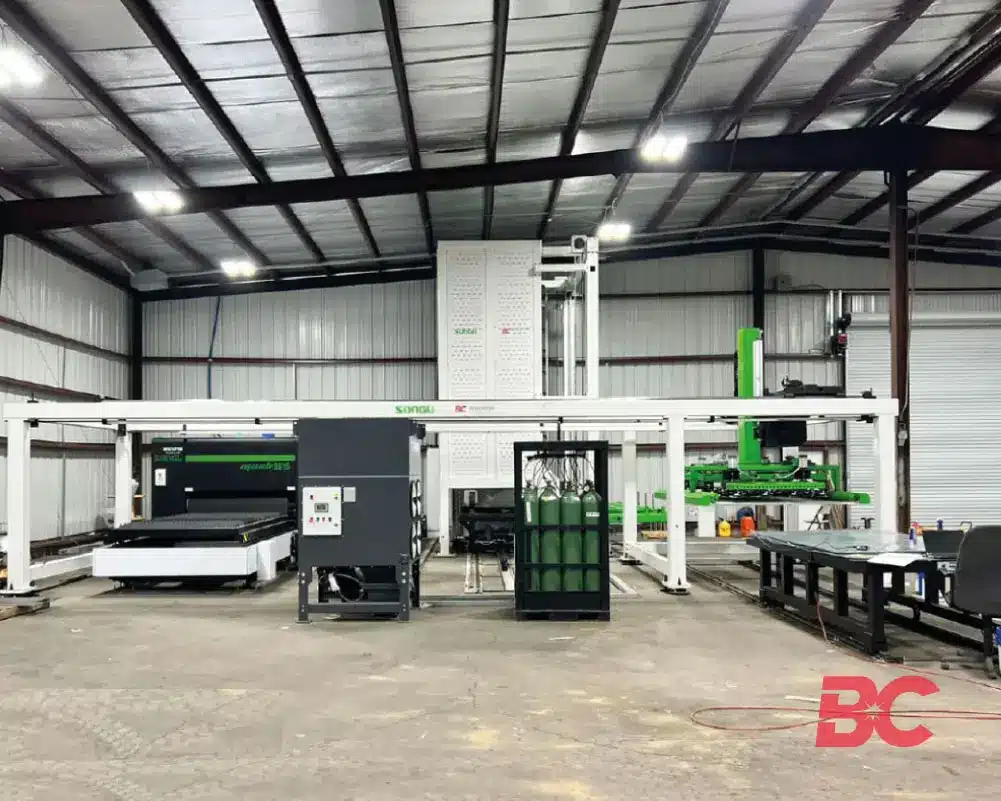

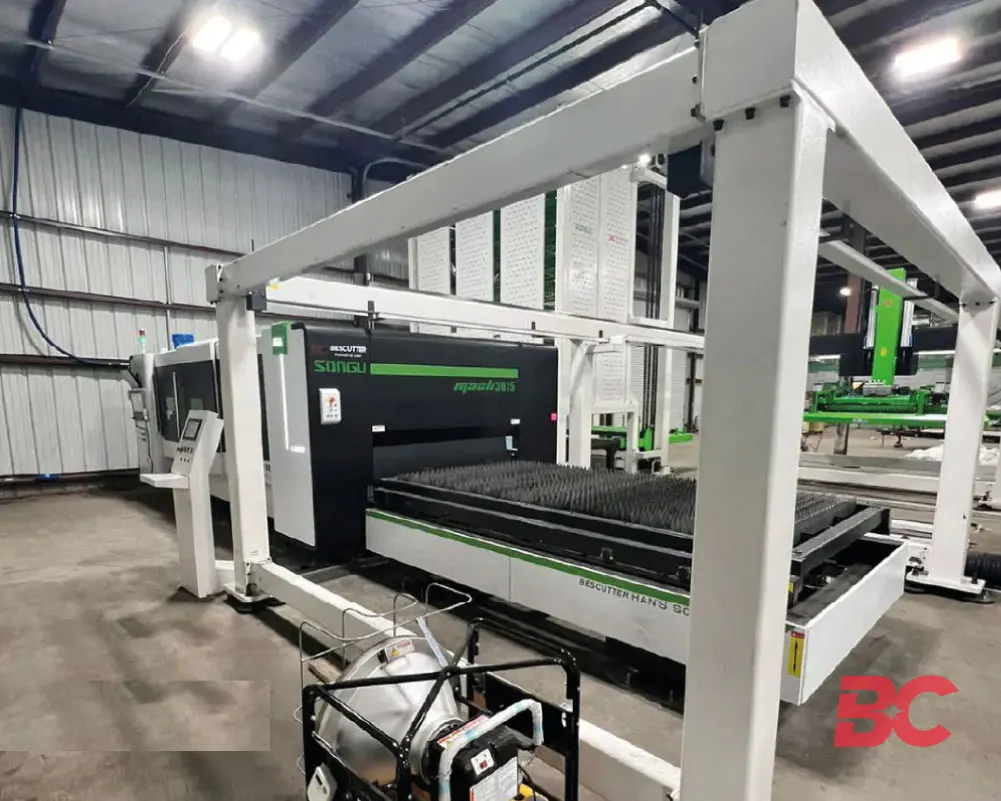

The HYSTORE is an advanced automatic loading, unloading, and storage system designed to enhance the efficiency of fiber laser cutting operations. Built for high-speed production environments, it integrates seamlessly with MACH and WIND series laser cutters, reducing manual handling and enabling a smooth, continuous workflow.
Optimized for High-Efficiency Production
| Specification Item | Details |
|---|---|
| Number of store layers | 8 levels |
| Max tray lifting speed | 0.25m/s |
| Max tray translational moving speed | 0.4m/s |
| Max translation speed of loading mechanism | 0.8m/s |
| Max lifting speed of loading mechanism | 0.25m/s |
| Max translation speed of unloading mechanism | 0.8m/s |
| Max lifting speed of unloading mechanism | 0.25m/s |
| Unloading fork switching speed | 0.4m/s |
| Vibration value | <0.5G |
| Running beat | 905 |
| Storage load | 24MT |
| The scope of work | 3000mm x 1500mm |
| Overall dimensions | 13150mm x 4800mm x 4840mm |
| Working environment | Temp: -10 to 45°C, humidity: ≤95% RH, no condensation |
| Power supply | 30 KVA / 3P+E / 380VAC ±10% / 50Hz |
| Air source | The working pressure shall not be lower than 0.6MPa, and the flow rate shall not be lower than 0.4m³/min |
