TruTool PN 200 Profile Nibbler

Our Price: $1,239.00

The TRUMPF TruTool PN 200 Profile Nibbler is a smaller hand held power nibbler that is made to reach hard angles and tight corners. Ideally suited to trapezoidal shapes this power nibbler’s ability to outperforms the competitors is unmatched. No sparks and no distortion on the workpiece are important factors when considering metal processing tools.

SKU 1751838 Category

Details of the TruTool PN 200 Profile Nibbler

TRUMPF Profile Nibbler TruTool PN 200 is a profile nibbler with short tool which is well-suited for cuts in trapezoidal sheets up to 85 mm, and for cutting C-L-U-profiles. Maneuverability is made easy as the power tool can even be roated 360°.

Strong profile nibbler: cuts sheet thicknesses up to 2 mm in mild steel

  • Powerful machine
  • Especially impressive when cutting double sheets
  • For highest curve maneuverability
  • No sparks
  • Quick&Easy: tool-free cutting-, punch- and tool change
  • One machine – three tools
  • Machine available as electric-version

Applications

  • Roof and fasade construction
  • Ventilation works and climate control technology
  • Plumbers
  • Encasings and covers

DETAILED SPECIFICATIONS

Profile NibblerTruTool PN 200 (230V)TruTool PN 200 (110V)
Max. material thickness
  • Steel 400 / mm²
2 mm2 mm
  • Steel 600 / mm²
1.5 mm1.5 mm
  • Steel 800 / mm²
1 mm1 mm
  • Aluminium 250 / mm²
3 mm3 mm
Working speed2.1 m/min2 m/min
Start hole diameter24 mm24 mm
Smallest radius50 mm50 mm
Rated input power500 W550 W
Strokes at nominal load1540 RPM1440 RPM
Weight (electrical version: without cable, cordless version: with battery)2.1 kg2.1 kg
Accessories included
Punchintegrated
Dieintegrated
Wearing plate1 pieceintegrated
Screwdriver Torx TX20TX20included
TRUMPF Box S1included
Additional accessories
Punchset of 51315713
Punchset of 101264146
Dieset of 21264153
Dieset of 51264154

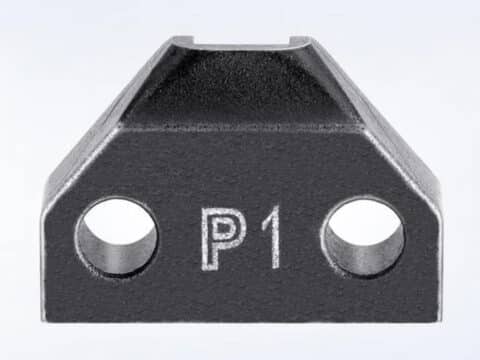

Die P11 pce1213131
Wear plateset of 21429275
Wear plateset of 51429276

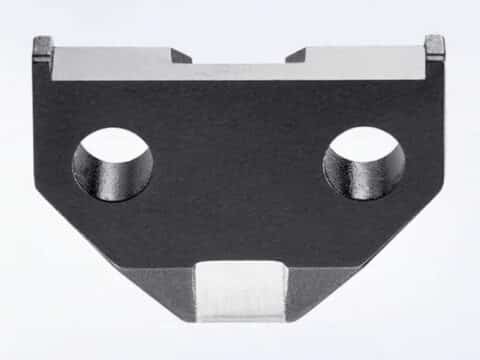

Punch guide1 pce0945697
Punch guideset of 21264367
Set Standard PN1 pce1429289
Grease G125 g344969
Grease G1900 g139440
Punch and nibble oil for steel500 ml010338
Punch and nibble oil for alu1000 ml125874
Options (accessories)
Tool N 2001750694
Tool PN 2011750692
