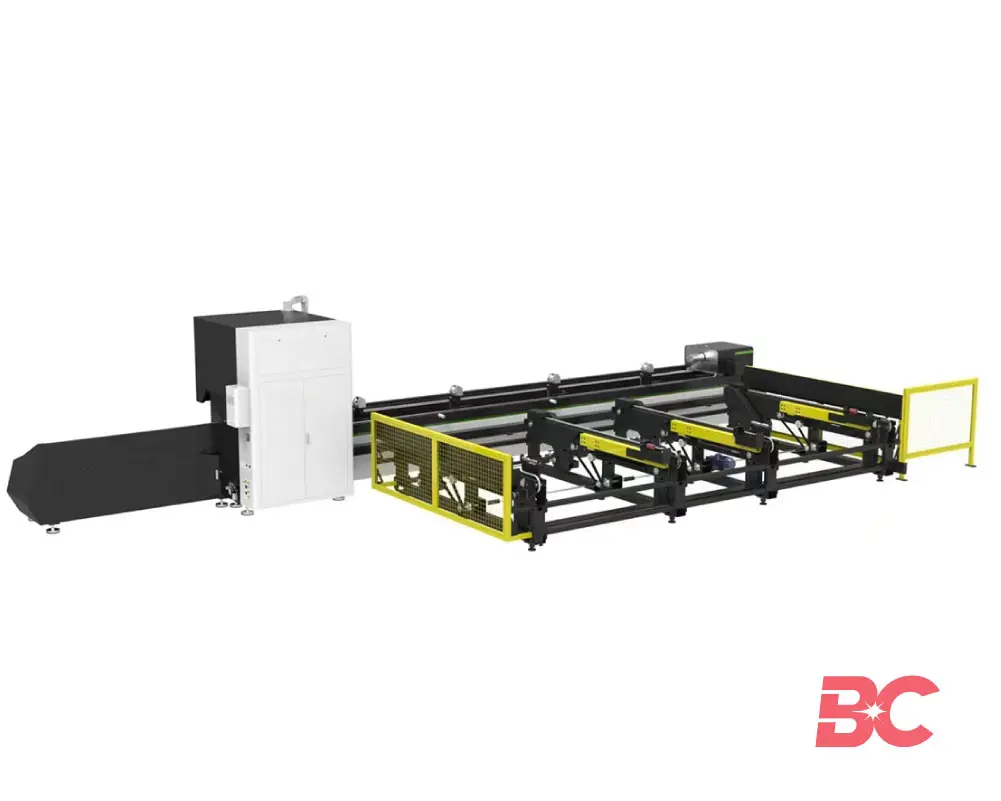

The Tube Master Fiber Laser Cutting Machine delivers industrial-grade performance for precision tube cutting. It features an advanced pneumatic auto-centering chuck for handling a wide variety of tube shapes, ensuring accuracy, efficiency, and reliability. Designed for high-speed production, it integrates intelligent software solutions for seamless operation.

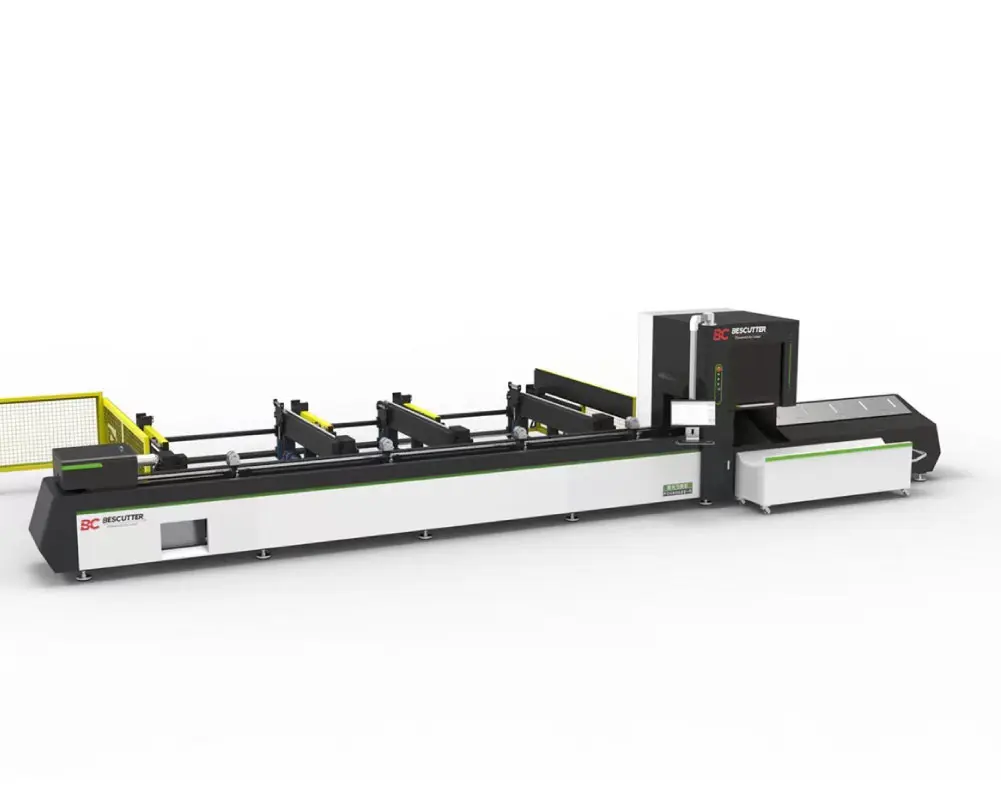

Bescutter Tube Master is a high-performance fiber laser cutting system engineered for precision and efficiency in metal tube processing. Designed for demanding industries such as automotive, aerospace, household appliances, and precision manufacturing, it delivers reliable, high-quality results.
Its pneumatic auto-centering chuck ensures accurate clamping for round, square, oval, flat, and triangular tubes, while the high-speed positioning system helps reduce production time and increase overall productivity.
Power that fits your needs

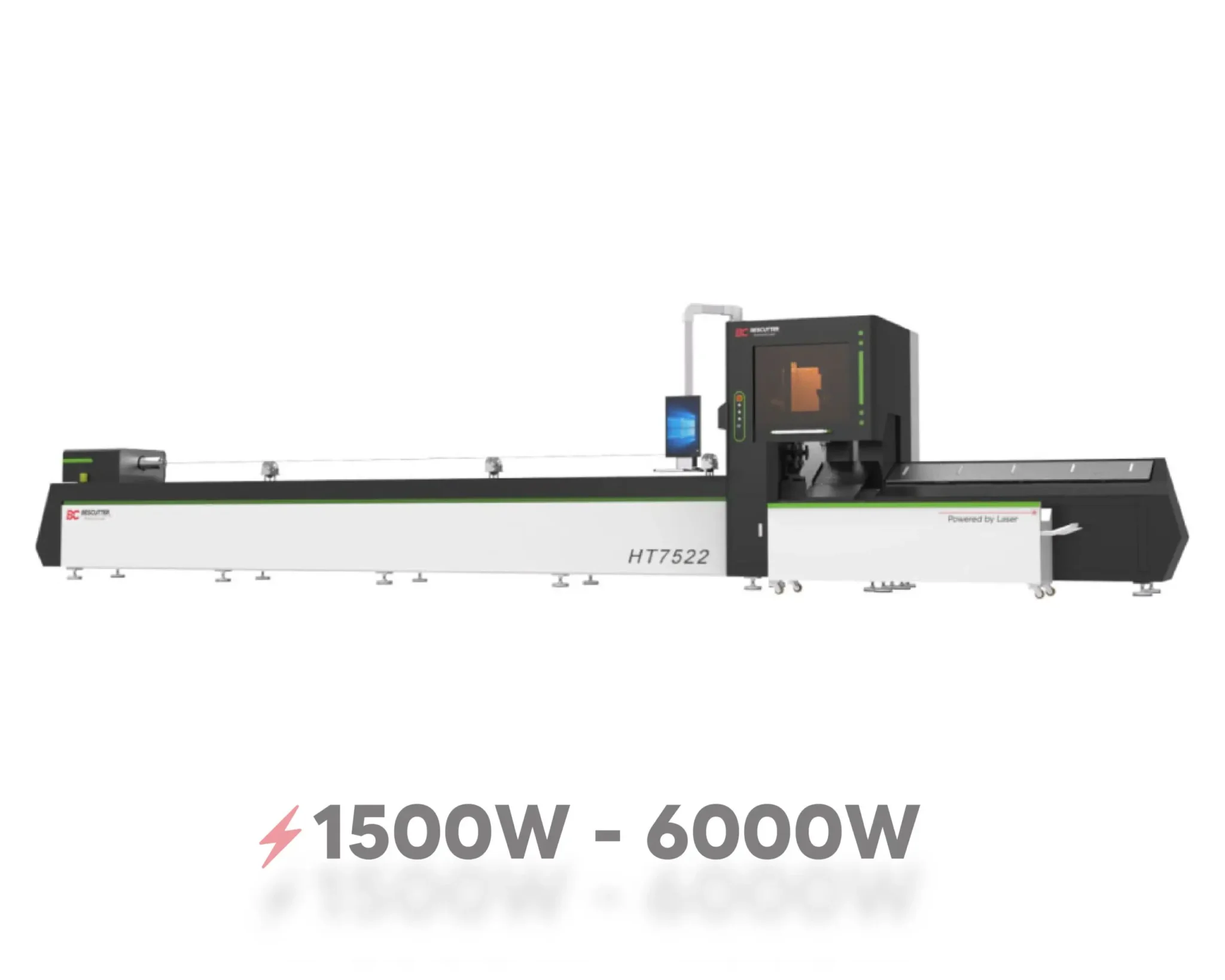

The Tube Master is available with 1,500W–6,000W laser power, providing flexibility to handle a wide range of materials and cutting requirements.
Key features
| Specification Item | Details |
|---|---|
| Tube range (length): | 295″ (7500 mm) |
| Tube diameter: | Standard: 0.78″- 8.66″ (20-220 mm) |
| Optional: 0.39″- 4.7″ (10-120 mm) | Y-axis |
| X-axis: | 295″ (7500 mm) |
| Y-axis: | 7.87″ (200 mm) |
| A, B-axis: | Infinite Rotation |
| Loading Capacity: | 220 Chuck: 342 lbs; 120 Chuck: 154 lbs. |
| X, Y-axis positioning accuracy: | ±0.03 mm/1000 mm |
| X, Y-axis re-positioning accuracy: | ±0.05 mm |
| A, B-axis positioning accuracy: | ±30° |
| A, B-axis re-positioning accuracy: | ±10° |
| X, Y-axis max positioning speed: | 100 m/min |
| Max positioning speed: | 100 rpm |
| Laser resonator: | BC Power / MAX |
| Optional laser wattage: | From 1,500W to 4,000W |
| Laser head: | Raytools |
| Machine Weight: | 14,330 lbs (6500 kg) |
| Dimensions: | 472″ x 87″ x 91″ (12000 x 2200 x 2300 mm) |
