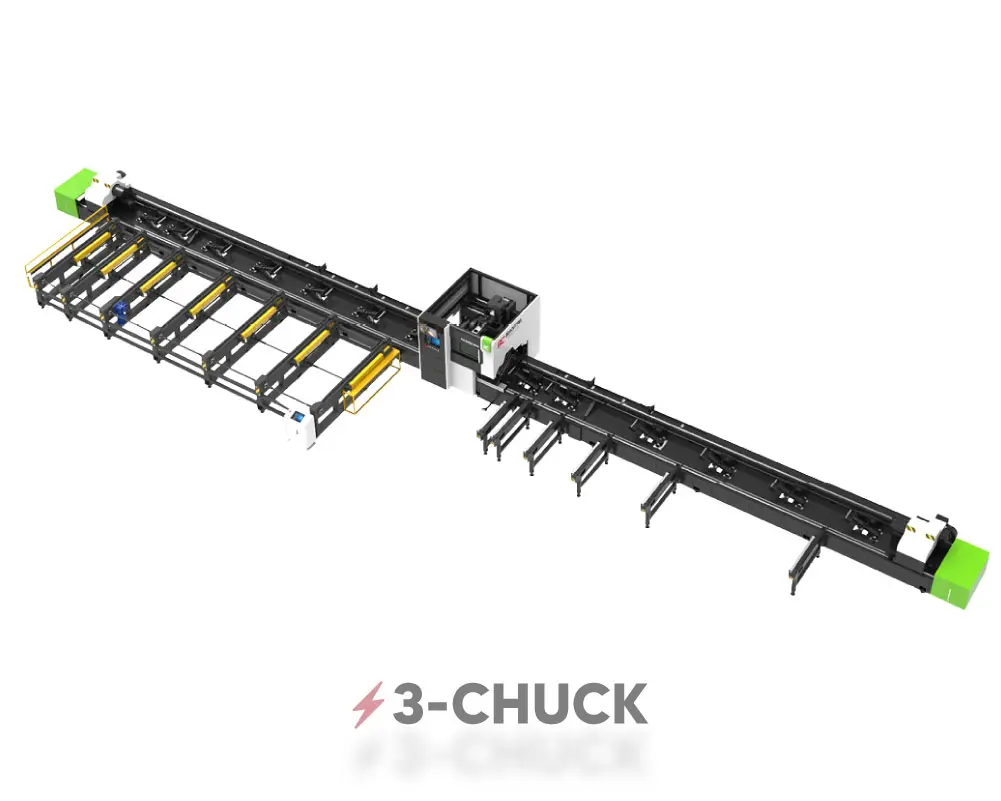

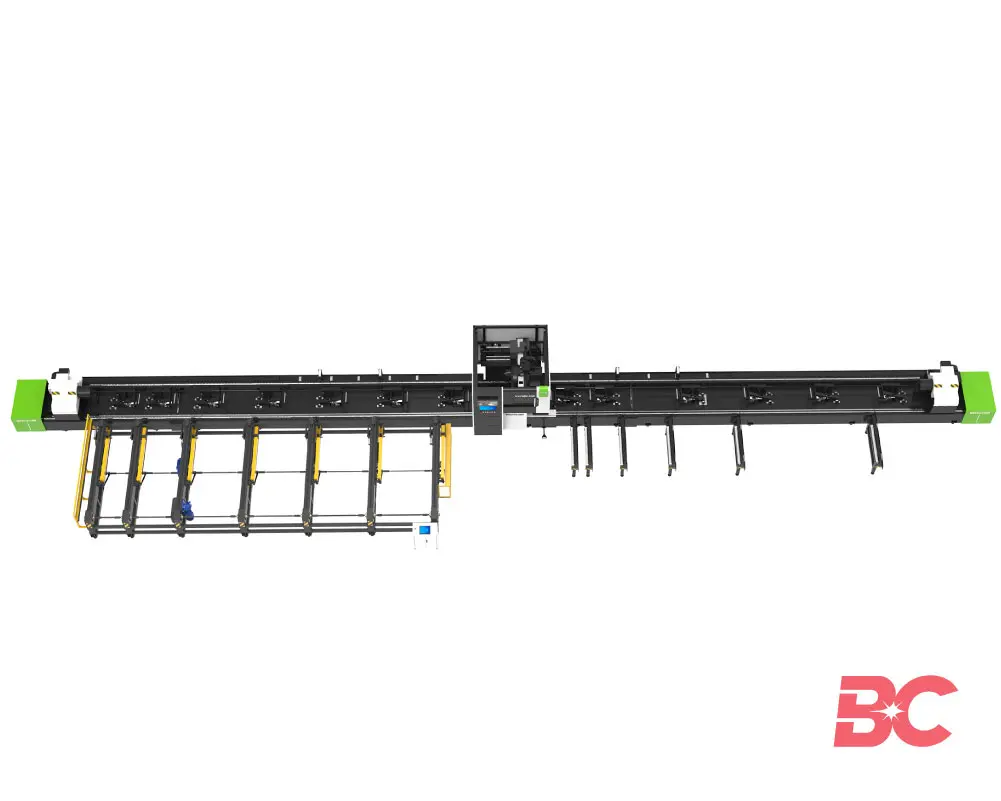

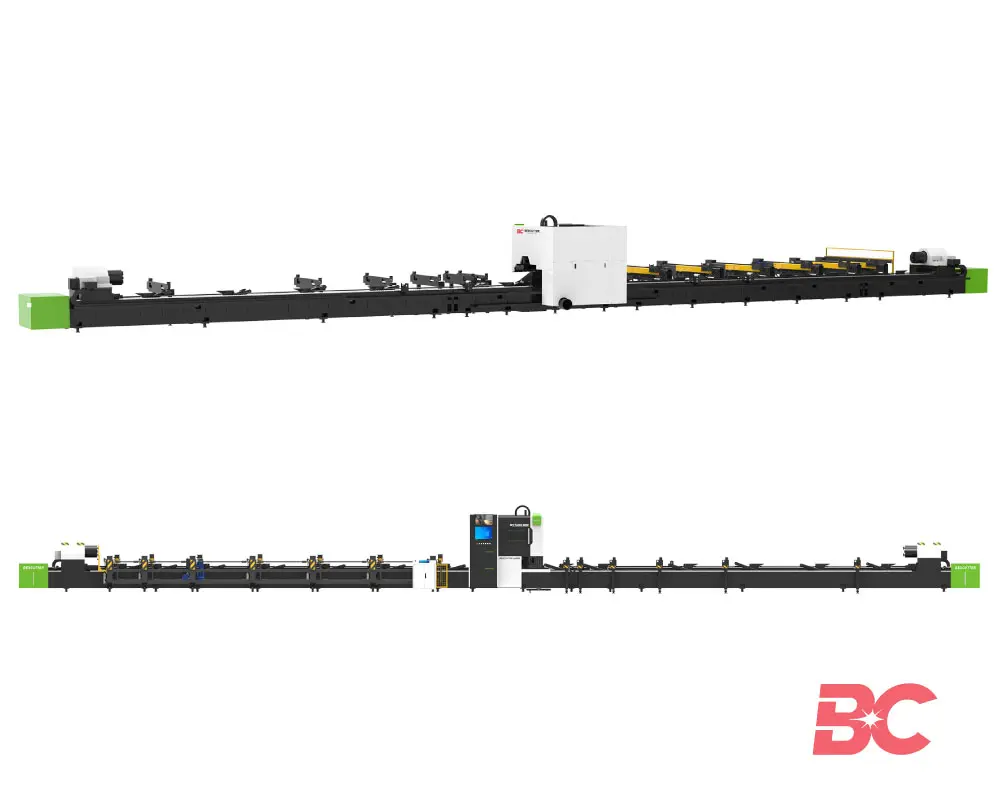

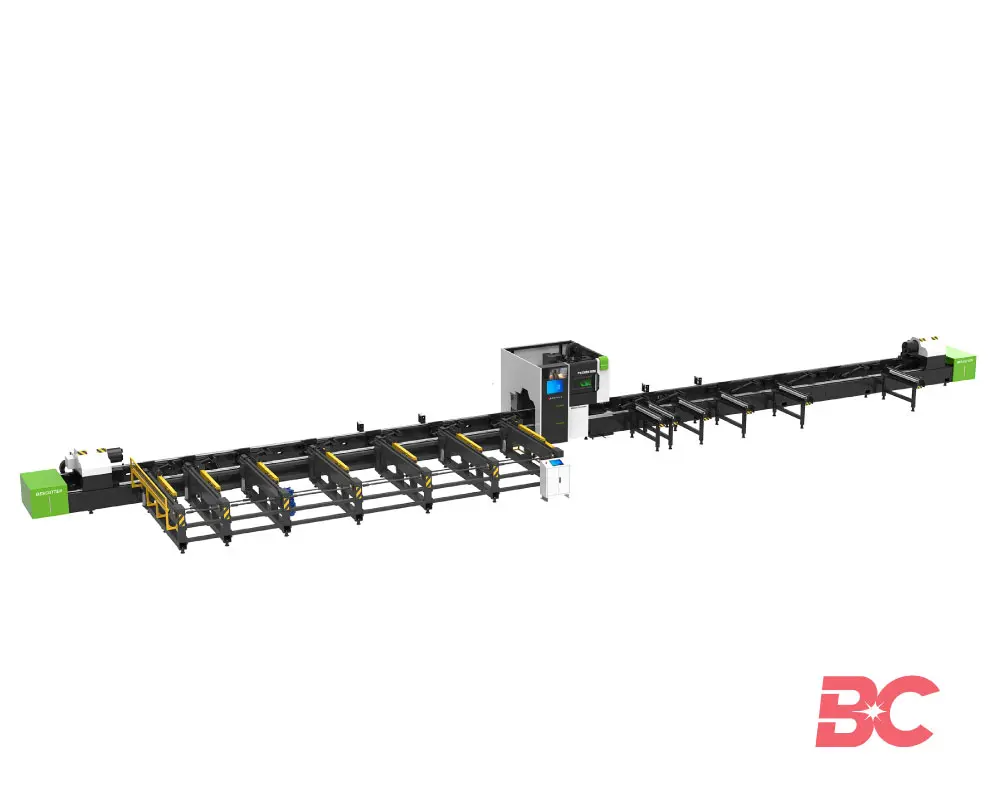

HyTube 3-Chuck Fiber Laser Cutting Machine packs industrial-grade performance into a high-efficiency system with automatic tube loading and precise 3-chuck clamping technology. Designed for cutting long-sized tubes and structural steel sections, it ensures zero waste cutting, full tube processing, and superior accuracy. Ideal for manufacturers requiring high-speed and precision tube processing.
Bescutter HyTube 3-Chuck is an advanced fiber laser tube cutting machine designed for long-length tube processing. Built for high-volume production, this heavy-duty system features automatic loading, multiple chuck stations, and high-precision control to maximize efficiency and accuracy.
Ideal for demanding industries such as metal fabrication, construction, and automotive, it delivers reliable CNC precision cutting across a wide range of tube profiles.
Power & precision that fit your needs
Key features
| Specification Item | Details |
|---|---|
| Laser Power | 1500-6000 |
| Working Range | Ø50mm – Ø500mm × 12500mm |
| Max Running Speed | 40 rpm/min |
| Max Positioning Speed | 50 m/min |
| Acceleration | 0.3G |
| Loading Capacity | 1400 KG |
| Positioning Accuracy | ±0.05 mm/m |
| Autoloading Length | 6000 – 12000 mm |
| Auto Un-loading Length | 12000 mm |
| Loading Cycle Time | < 90 s |
| Bevel Cut Range | ±45° |
| Exhausting Area | Near the cutting area |
| Machine Weight | Approximately 23000 kg (machine body only) |
| Dimension | 30400 × 3600 × 3200 mm (not including loading & unloading) |
