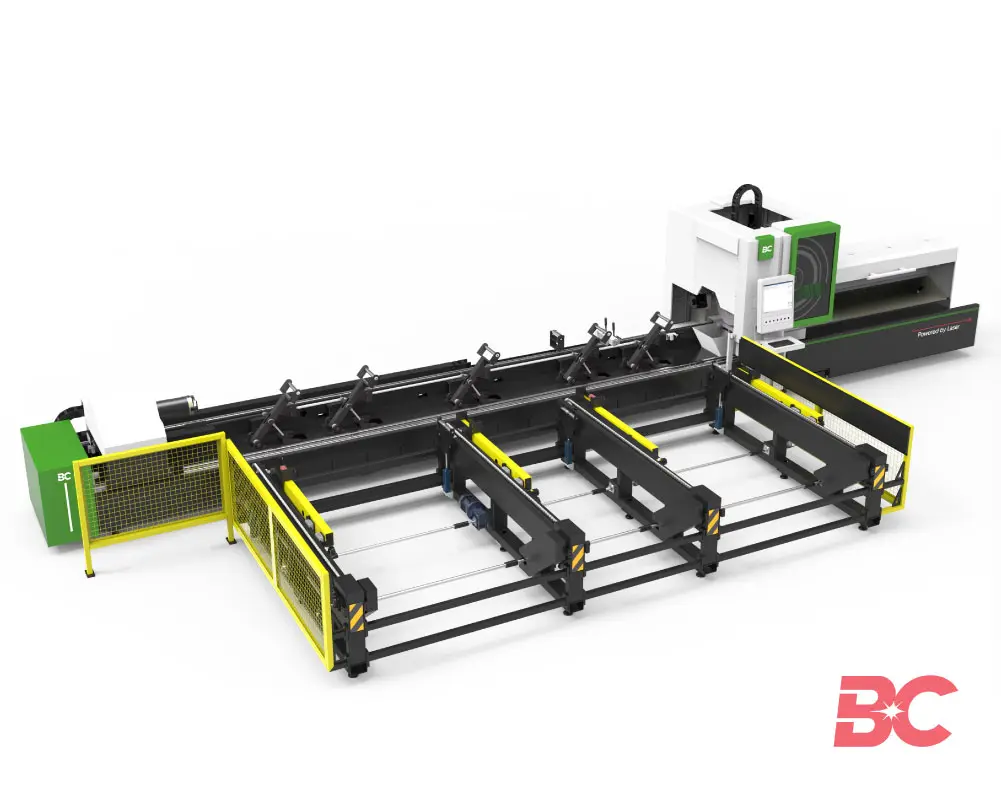

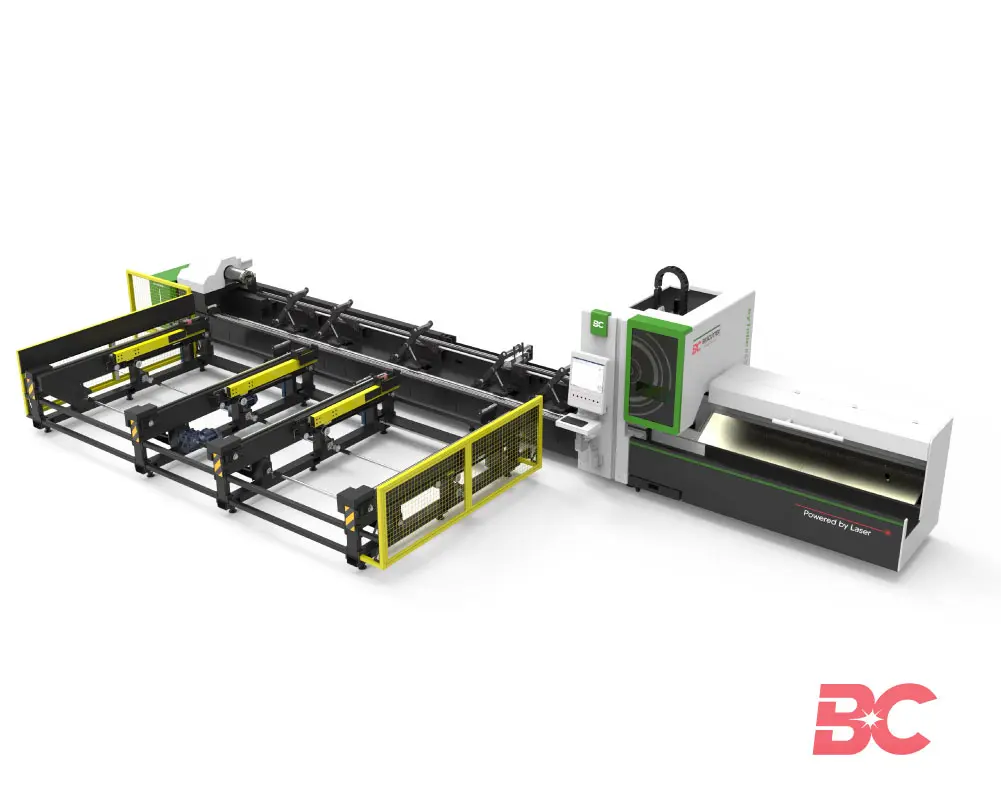

The HYTUBE 2-Chuck Fiber Laser Cutting Machine is designed for long-sized tube and section bar automatic laser cutting. Built for precision and efficiency, it can handle various structural steel sections, including T/H/I/L sections, round, square, triangle, rectangular, oval, channel, and L-shape tubes. Equipped with auto-loading and high-precision pneumatic clamps, it offers enhanced automation, speed, and accuracy for industrial applications.

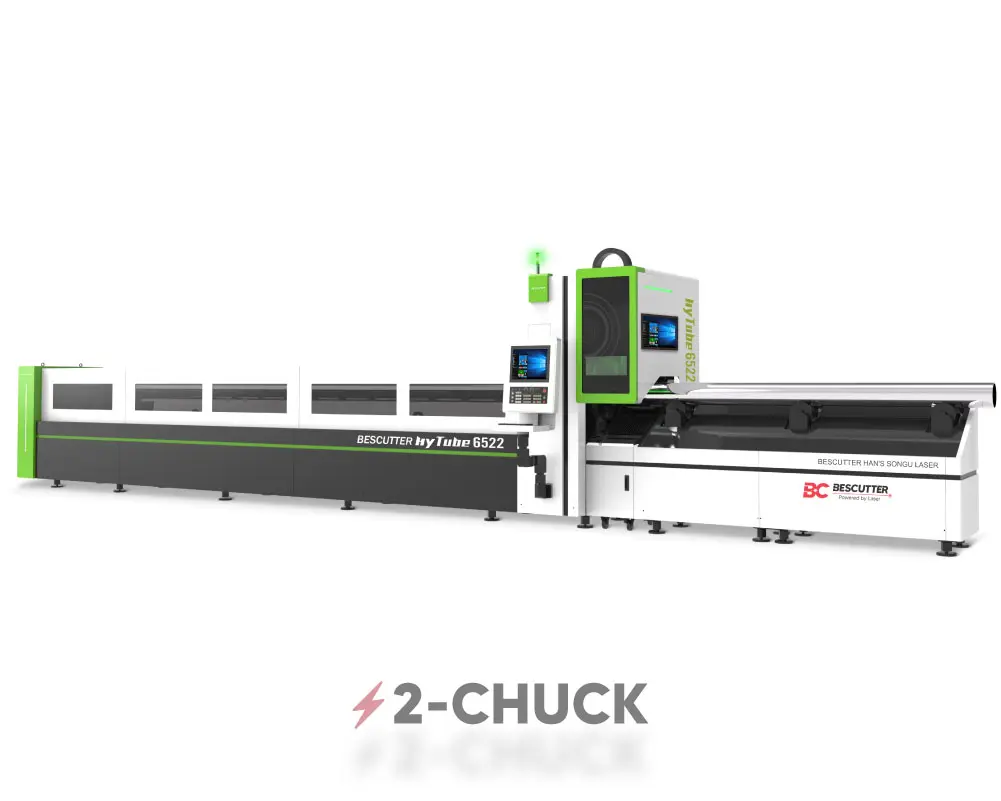

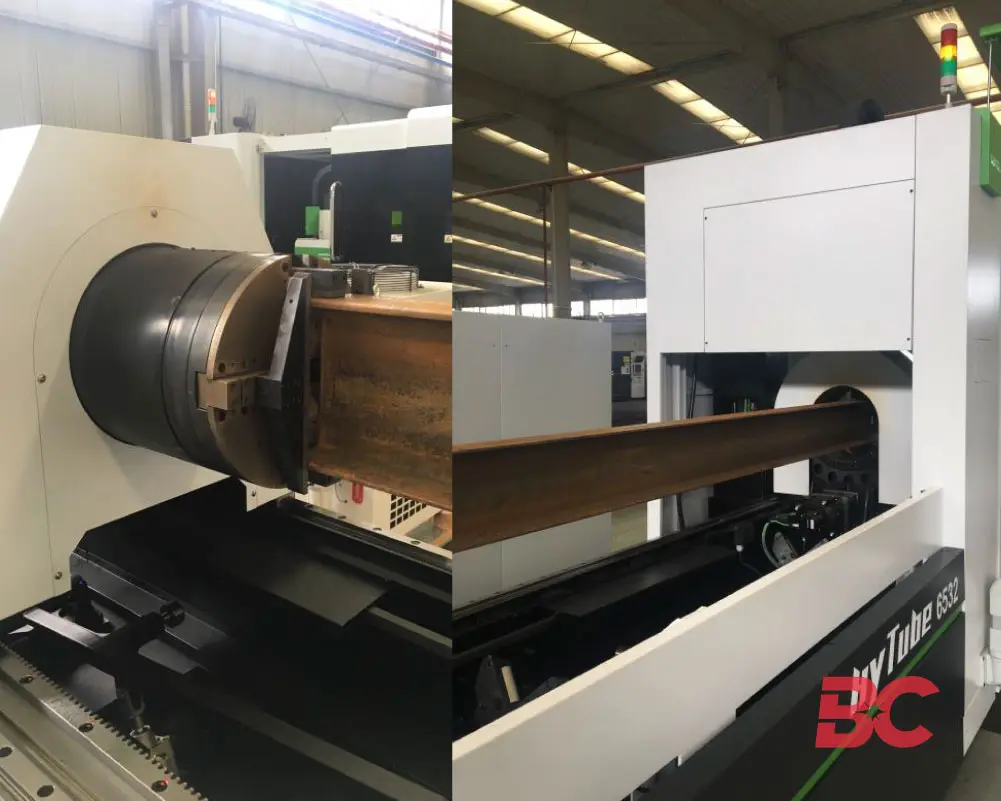

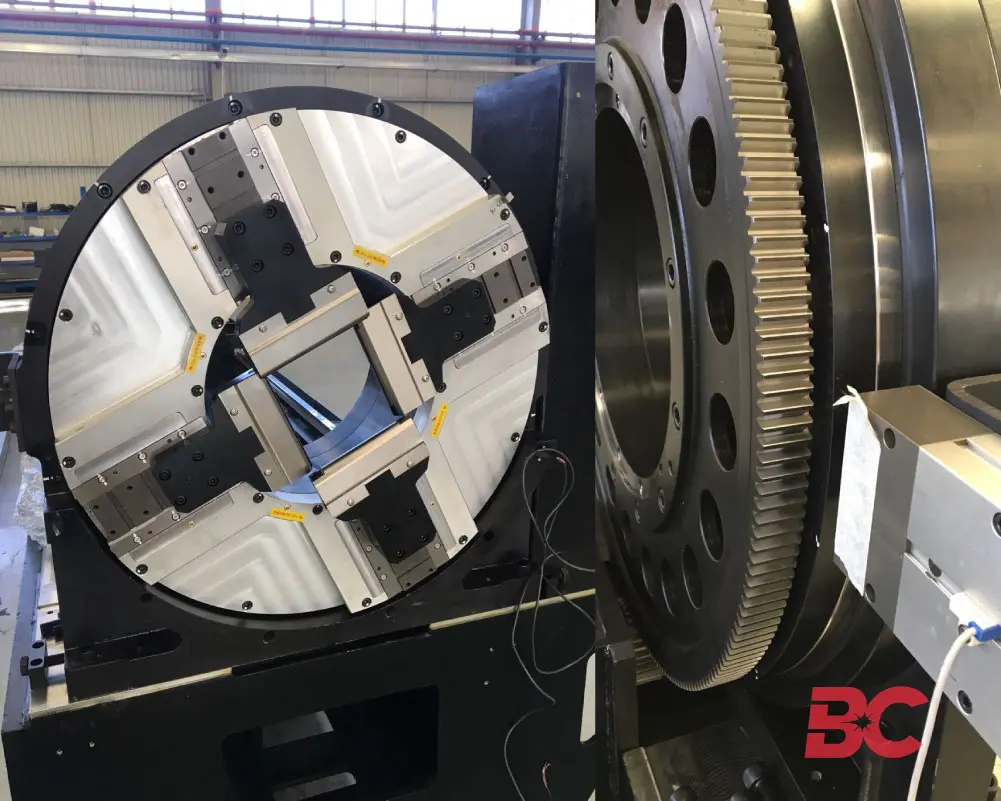

BesCutter HYTUBE 2-Chuck Fiber Laser Cutting Machine is a high-efficiency system engineered for the automatic cutting of long tubes and structural steel sections. Designed for precision and stability, its dual pneumatic chuck system ensures secure clamping and accurate material rotation throughout the cutting process.

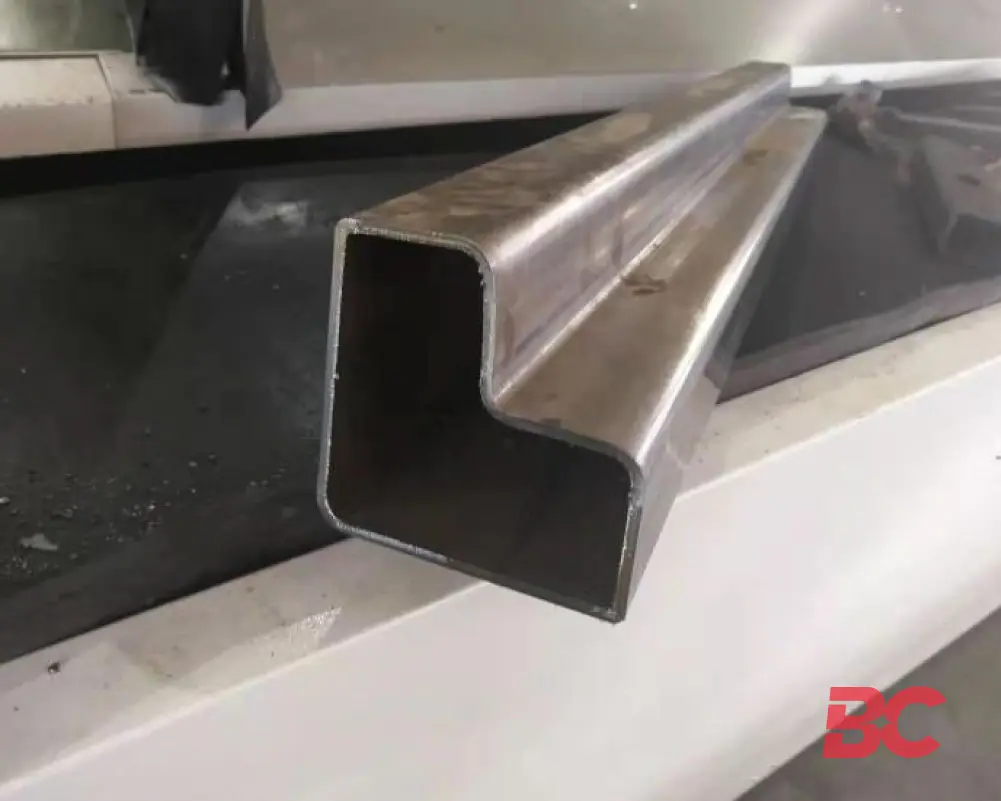

The system supports a wide range of tube profiles, including T, H, I, L sections, as well as round, square, rectangular, oval, triangular, channel, and L-shape tubes, making it a versatile solution for various industrial applications.
Key features
| Specification Item | Details |
|---|---|
| Tube range (length) | 244″ (6200 mm) |
| Tube diameter | Standard: 0.78″- 8.66″ (20- 220 mm) Optional: 0.78″- 12.60″ (20- 320 mm) |
| X-axis | 246″ (6250 mm) |
| Y-axis | 7.87″ (200 mm) |
| A, B-axis | Infinite Rotation |
| Z-axis | 6.30″ (160 mm) |
| X, Y-axis positioning accuracy | ±0.03 mm/1000 mm |
| X, Y-axis re-positioning accuracy | ±0.05 mm |
| A, B-axis positioning accuracy | ±30″ |
| A, B-axis re-positioning accuracy | ±10″ |
| X, Y-axis max positioning speed | 100 m/min |
| Max positioning speed | 100 rpm |
| Laser head | PRECITEC (Germany Brand) |
| Machine Weight | 16534 lbs (7500 kg) |
| Dimensions | 472″x 169″ x 110″ (12000 x 4300 x 2800 mm) |
