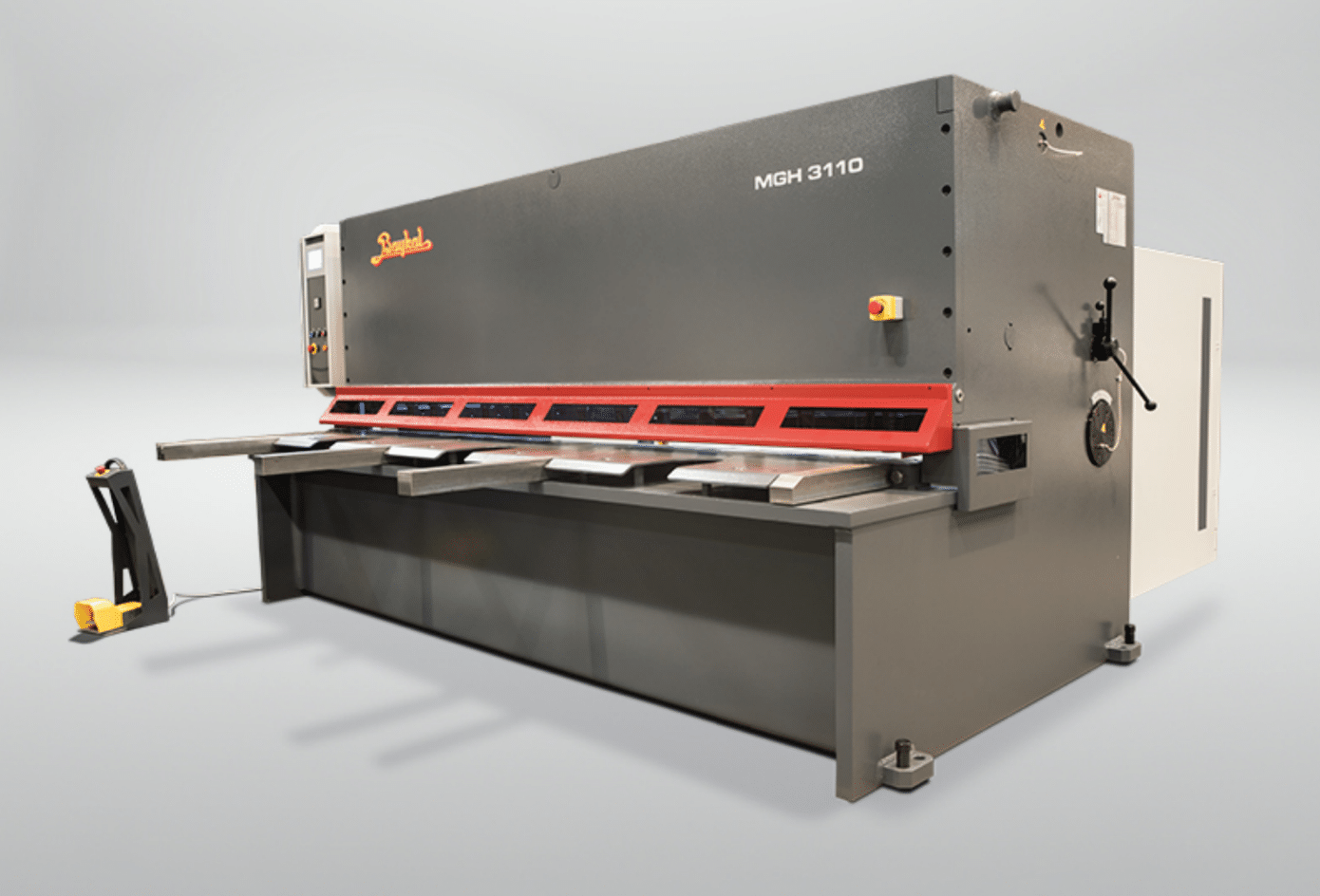

BAYKAL MGH Heavy-Duty Swing Beam Shear

Maximum robustness. Rapid blade gap adjustment mechanism.

  • Robust – Thanks to its long-life structure, it provides dynamic and extremely sensitive productivity
  • Flexibility – MGH gives flexibility to its users with thin and thick sheet metal material cutting choices
  • Easy to Operate – MGH is designed to provide operating possibilities even in the most difficult conditions
  • Productivity – MGH gives high productivity, high sensitivity, and effective production cost to your production
Category

DESIGN AND OPERATING FEATURES

  • Welded all-steel frame providing maximum rigidity and cutting accuracy.
  • Swinging top beam working on high precision and self-aligning roller bearings.
  • Rapid blade gap adjustment mechanism.
  • Swing-up backgauge system for shearing longer pieces than maximum backgauge range.
  • Backgauge retract function.
  • Compact, low-maintenance hydraulic unit located above oil tank.
  • Easily servicable hydraulic cylinders in series connection.
  • Hydraulic holddown system.
  • Hydraulic overload protection.
  • Fine adjustment of blades from lower beam.
  • Adjustable stroke length to increase number of strokes on shorter cuts.
  • Extra deep (250 mm) side frame throat gaps allowing continuous strip slitting.

STANDARD EQUIPMENT

  • Shear blades made from tough and wear-resistant alloyed material
    • Top blade : two cutting edges
    • Bottom blade : four cutting edges.
  • 1000 mm power backgauge with ballscrew spindles to 0.1 mm precision.
  • Backgauge digital readout control.
  • Digital stroke counter.
  • Foot pedal control for single and repetitive cutting cycles.
  • 1000 mm squaring arm with scale, T-slot and flip-stop.
  • Front support arms in 1000 mm length.
  • Work table with filler plates, ball transfers and hand slots.
  • Emergency stop buttons.
  • Shadow line facility with fluorescent lighting.
  • See-through finger guard and side throat guards.
