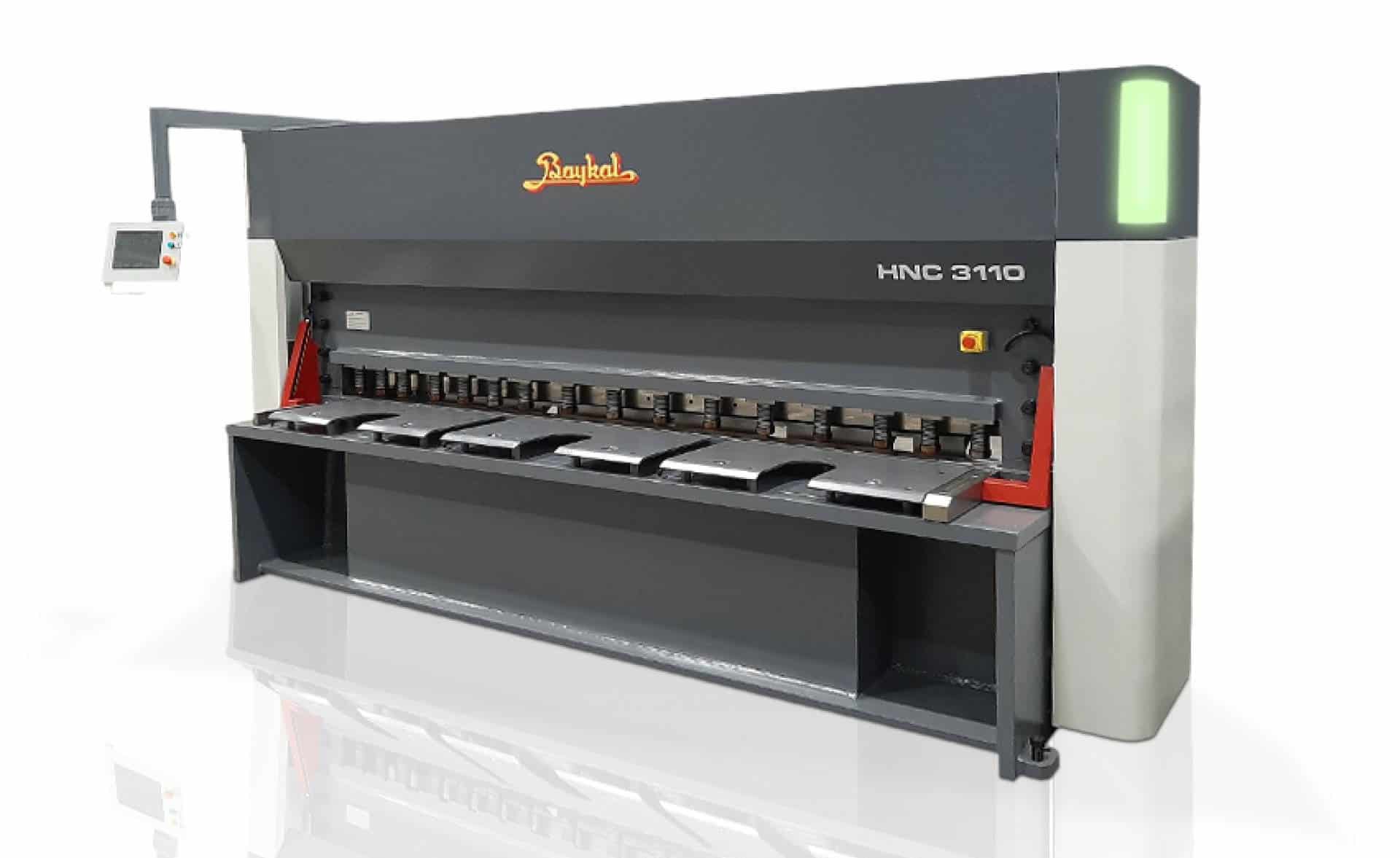

BAYKAL HNC Variable Rake Guillotine Shear

HNC Guillotine

Outstanding cutting quality and accuracy. Design with “variable-rake” concept.

Maximum Capacity – It is possible to make superior and unique processes with its maximum cutting capacity
Flexibility – HNC gives flexibility to its users with thin and thick sheet metal material cutting choices
Reliable – Work easily – Reliable Processes, high quality
Productivity – High productivity, high sensitivity and affective production cost to your production

Category Baykal Shears

Details

DESIGN AND OPERATING FEATURES

Rigidly welded all-steel frame construction.
Design with “variable-rake” concept.
Adjustment of machine functions with easy-to-use digital control units.
Extra deep (350 mm) side frame throat gaps allowing continuous strip slitting.
Swing-up backgauge system for shearing longer pieces than backgauge range.
Backgauge system with ballscrews.

Backgauge retract function.
Adjustable stroke length to increase number of strokes on shorter cuts.
Compact, low-maintenance European hydraulics.
Hydraulic holddown system.
Hydraulic overload protection.
Centralised manual lubrication system.

STANDARD EQUIPMENT

Shear blades from tough and wear-resistant alloyed material:
- Top blade: Two cutting edges.
- Bottom blade: Four cutting edges.
Digital control unit for backgauge positioning, rake adjustment, and blade gap setting.
Foot pedal control for single and repetitive cutting cycles.
1000 mm power backgauge with ballscrew spindles to 0.1 mm precision.
1000 mm squaring arm with scale, T-slot and flip-stop.

Front support arms in 1000 mm length with scale, T-slot and flip-stop.
Digital stroke counter.
Pendant arm.
Work table with filler plates, ball transfers and hand slots.
Emergency stop buttons on the pendant and on the mainframe.
Shadow line facility with fluorescent lighting.
See through finger guard and side throat guards.

Product Catalog & Technical Specifications
