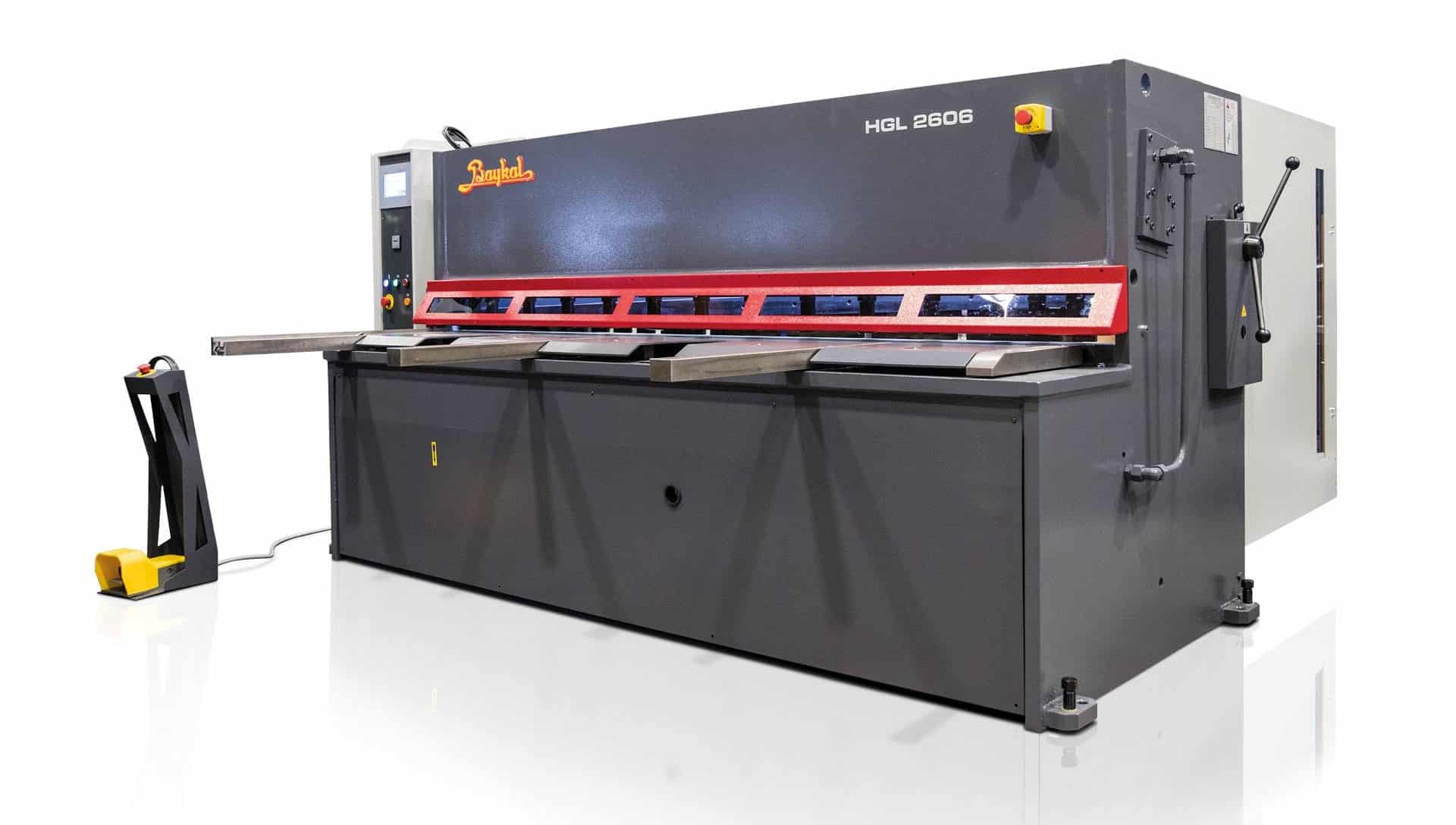

BAYKAL HGL Swing Beam Shear

HGL Swing Beam Shear

Swinging top beam working on high precision and self-aligning roller bearings.

Economic – HGL contributes to your budget with its low business investment
Robust – Thanks to its ergonomic design and long-life rigid structure, it provides dynamic and extremity sensitive productivity
Productivity – By prefering HGL shears, you will make the best choice in its class with speed, performance and cutting sensitivity
High Precision – Swinging top beam working on high precision and self-aligning roller bearings

Category Baykal Shears

Details

DESIGN AND OPERATING FEATURES

Welded all steel frame providing maximum rigidity and cutting accuracy.
Top beam and work table of boxtype construction.
Rapid blade gap adjustment mechanism.
Swing-up backgauge system for shearing longer pieces than the backgauge range.
Backgauge retract function.
Compact, low-maintenance hydraulic unit located underneath work table.

Hydraulic cylinders plainly designed and easily serviceable.
Hydraulic holddown system.
Hydraulic overload protection.
Fine-adjustment system for blades.
Adjustable stroke length to increase number of strokes on shorter cuts.
Top beam returning back with gas cylinders

STANDARD EQUIPMENT

Shear blades made from tough and wear-resistant alloyed material
- Top blade: Two cutting edges.
- Bottom blade: Four cutting edges.
750 mm power backgauge with ballscrew spindles to 0.1 mm precision.
Backgauge digital readout control.
Digital stroke counter.
Foot pedal control for single and repetitive cutting cycles.

1000 mm squaring arm with scale, T-slot and flip-stop.
Front support arms in 1000 mm length.
Work table with filler plates, ball transfers and hand slots.
Emergency stop buttons.
Shadow line facility with fluorescent lighting.
See-through finger guard
