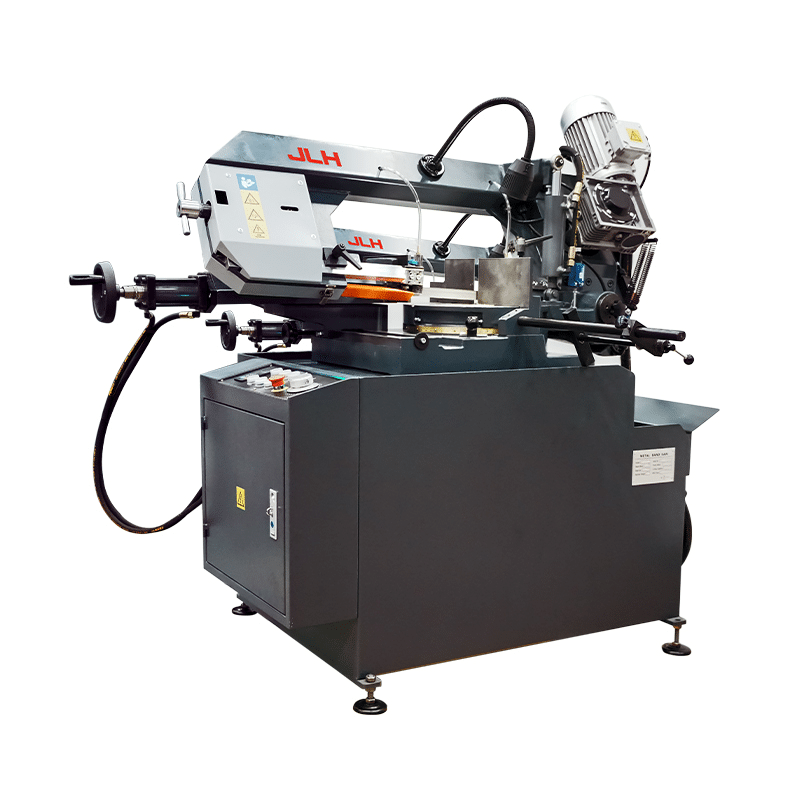

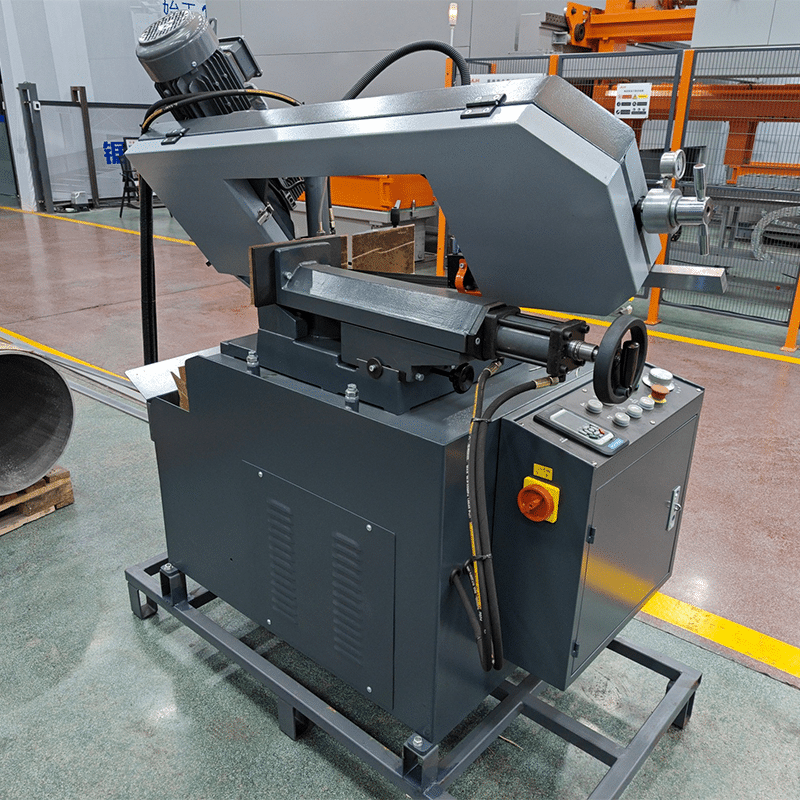

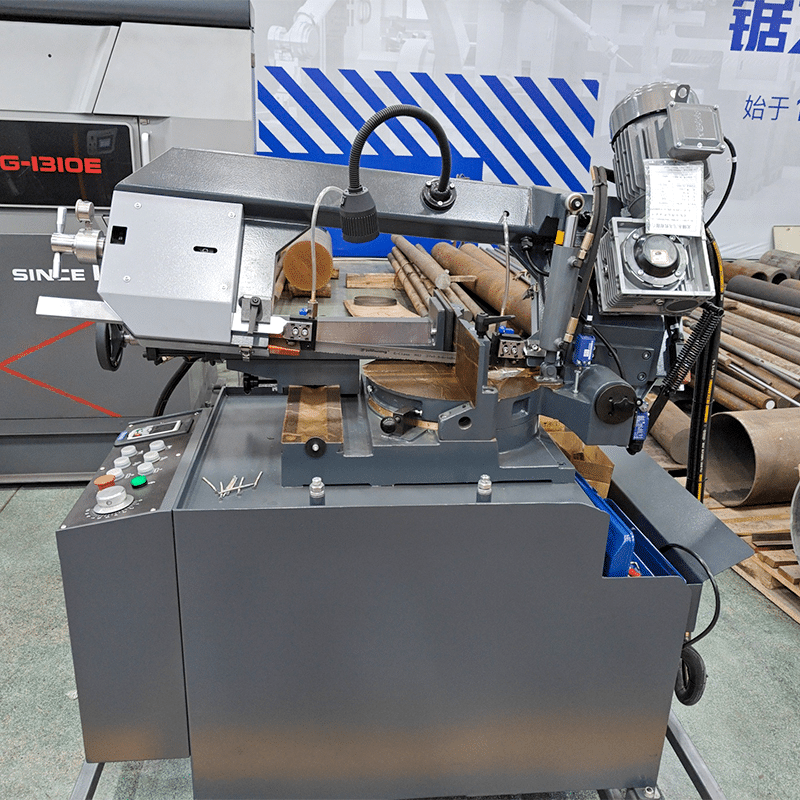

The JLH Scissors Miter Band Saw series combines precise cutting with multi-angle flexibility, supporting dual miter cuts from 0° to 60°. Equipped with an intelligent control system, powerful hydraulic clamping, and durable blade guidance, this series ensures efficient and accurate performance across various cutting tasks. Whether it’s structural steel, pipes, or complex profiles, the series handles them effortlessly, meeting diverse production needs.
| Specifications | S-230DM-TECNO |
Cutting range 90° round | φ230mm /φ9in |
Cutting range 90° flat (W x H) | 310*230mm 12.2*9in |
| Cutting range 45° round | φ210mm /φ8.3in |
| Cutting range 45° flat (W x H) | 210*210mm 8.3*8.3in |
| Cutting range 60° round | φ140mm /φ5.5in |
| Cutting range 60° flat (W x H) | 140*140mm 5.5*5.5in |
| Smallest size to be cut | 10*10mm 0.4*0.4in |
| Clamping range | 0-310mm/0-12.2in |
| Shortest length of cut-off piece | 30mm/1.2in |
| Shortest remnant length individual cut | 50mm/2in |
| Length | 800mm/31.5in |
| Width incl. chip conveyor | 1600mm/63in |
| Height | 1500mm/59in |
Material support height | 880mm/34.6in |
| Total weight | ≈500KG/1102lb |
| Total connected load | 2.1kw/2.8hp |

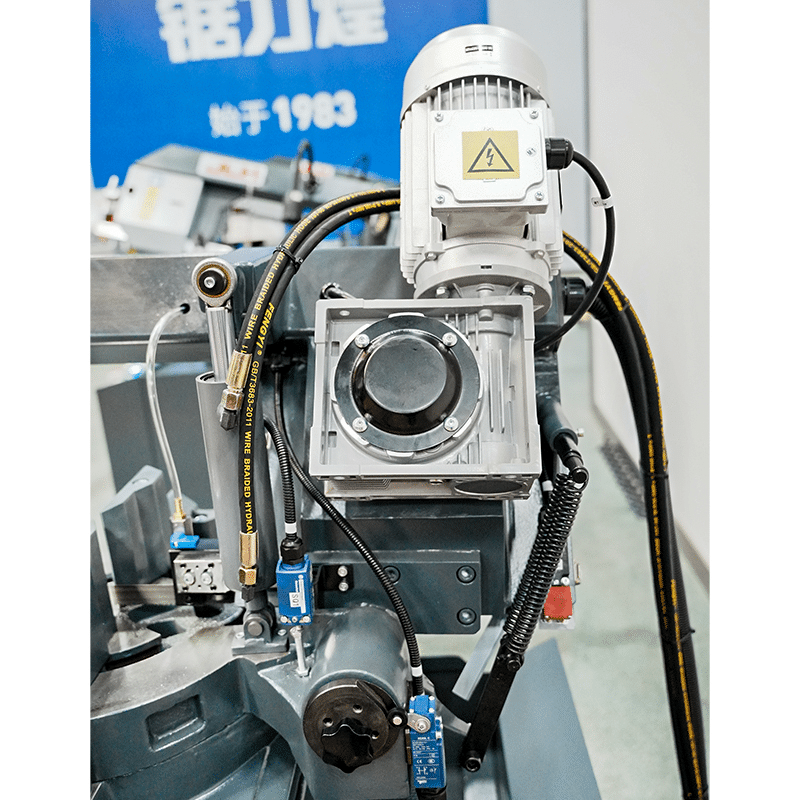

| Power of saw motor | 1.5kw/2hp |
| Hydraulic motor | 0.42kw/0.56hp |
| Cutting speed infinitely variable with | 20-80m/min 65.6-262.4ft/min |
| Saw feed speed | 1 – 300 mm/min 0.04-11.8In/min |
| Dimensions of saw blade | 2910*27*0.9mm 114.6 *1.06*0.03in |
| Functional description | S-230DM-TECNO |
CE standard safety protection | ● |
| Double valve feed control | × |
| Single valve feed control | ● |

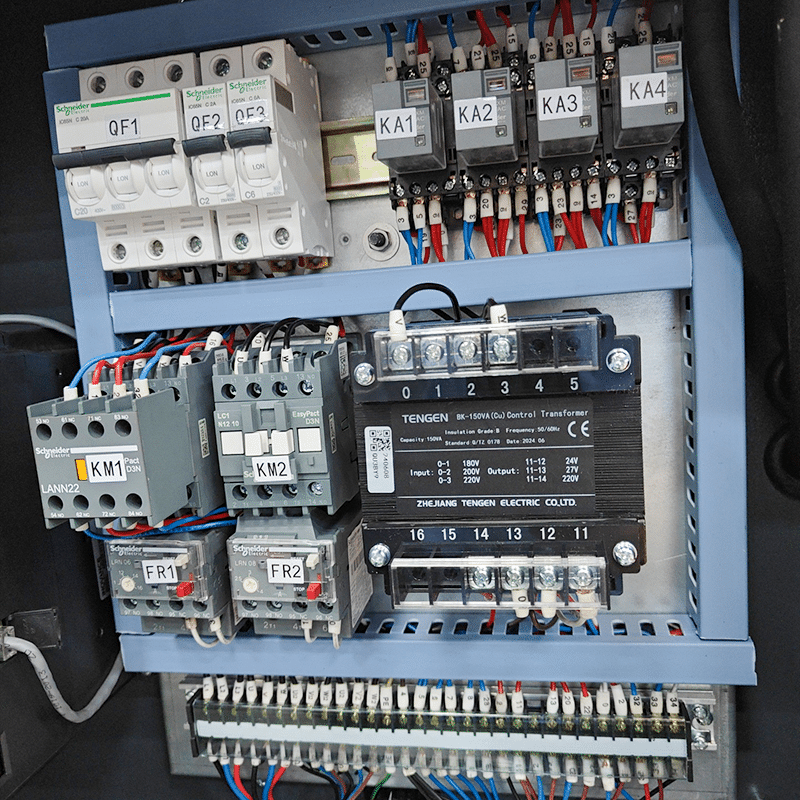

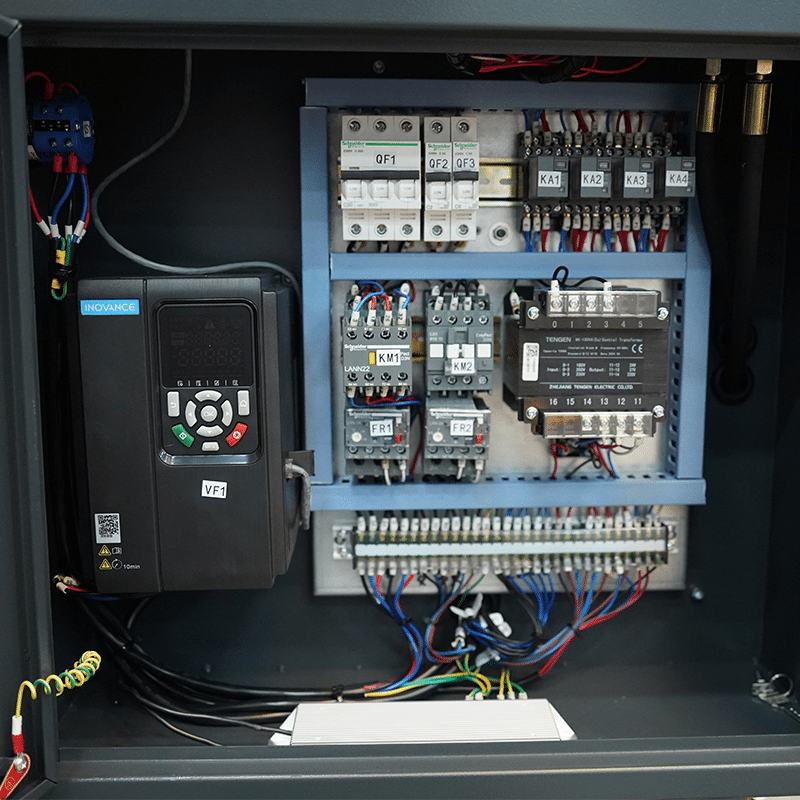

| CE Electrical Safety | ● |
UL Electrical Safety | ○ |

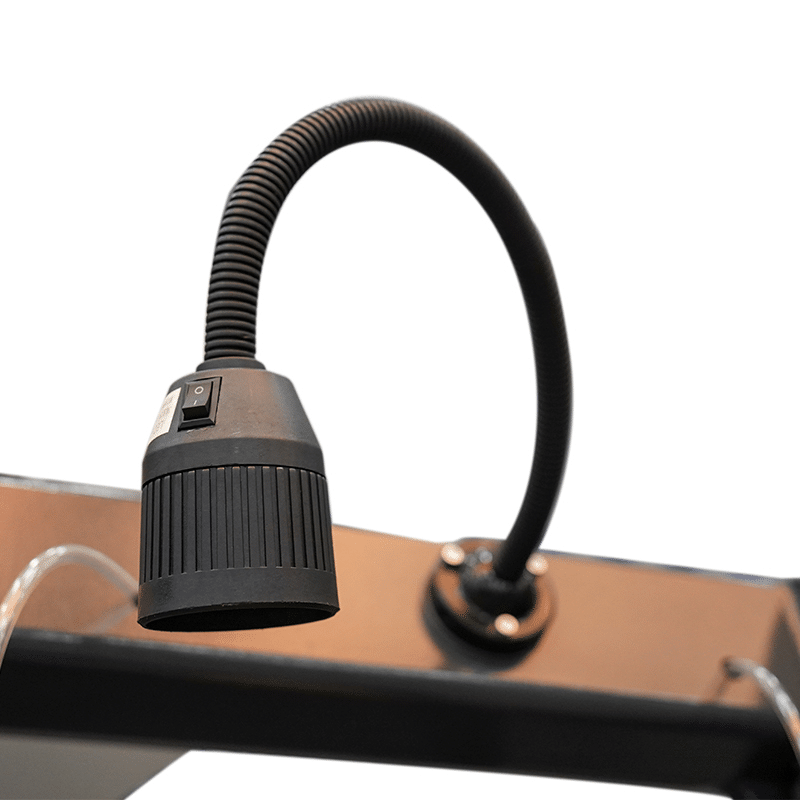

LED working light | ● |
| Laser line projection | ○ |
Blade breakage detection | ● |

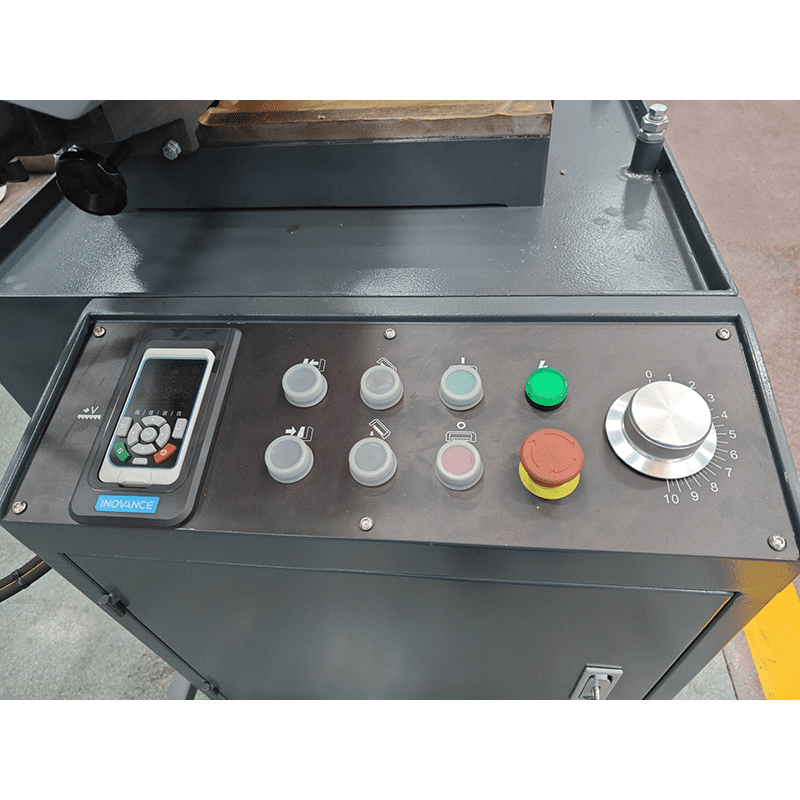

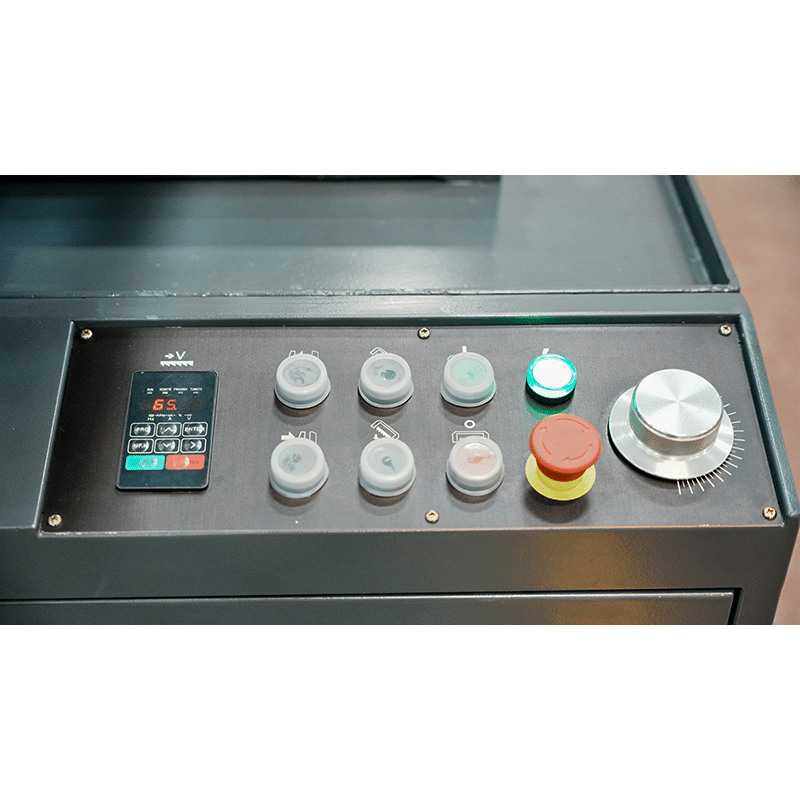

| HMI+Buttons | × |

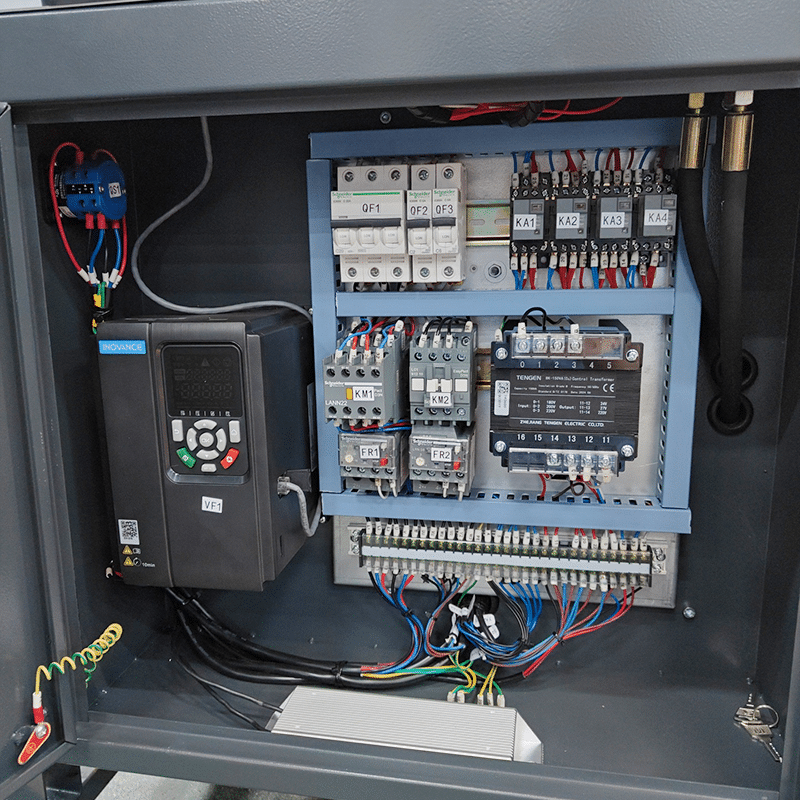

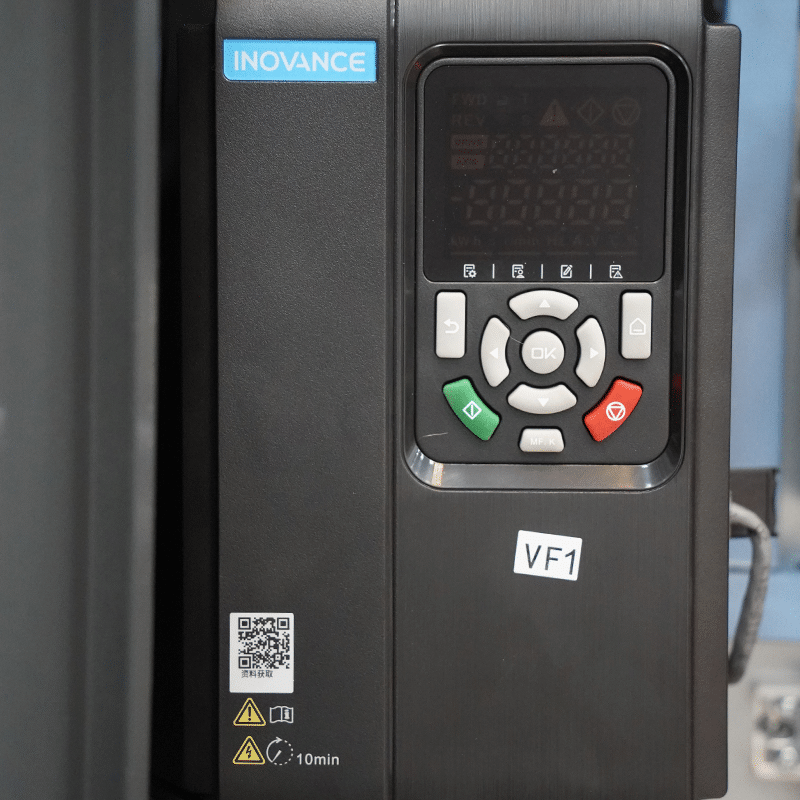

| Inverter | ● |
| Deviation detector | × |
| Automatic Angle sawing setting | × |
| Vise pressure regulator | ○ |
| Motorized chip brush | × |
| Top clamp | × |
| Mist Spray device (1 L) | ○ |
| Hydraulic cooling fan | × |
| Hydraulic feeding | × |
| Servo feeding | × |
| Single Vise Clamping | ● |
| Manual movable Guide arm | ● |
| Tool box (wire brush, levelling pads, spare paint) | × |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
