We are pleased to introduce the H-50333TEC and the H-TEC Series Horizontal Semi-Automatic Band Saws. These machines are designed to meet the precision cutting needs of the mid-to-high-end market, combining semi-automatic operation with exceptional cutting performance.

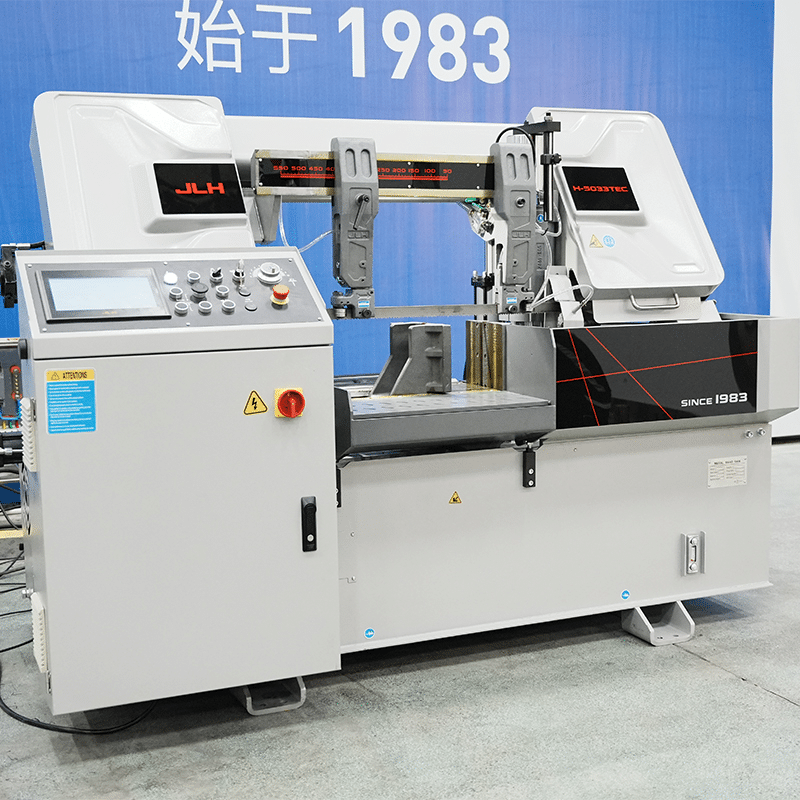

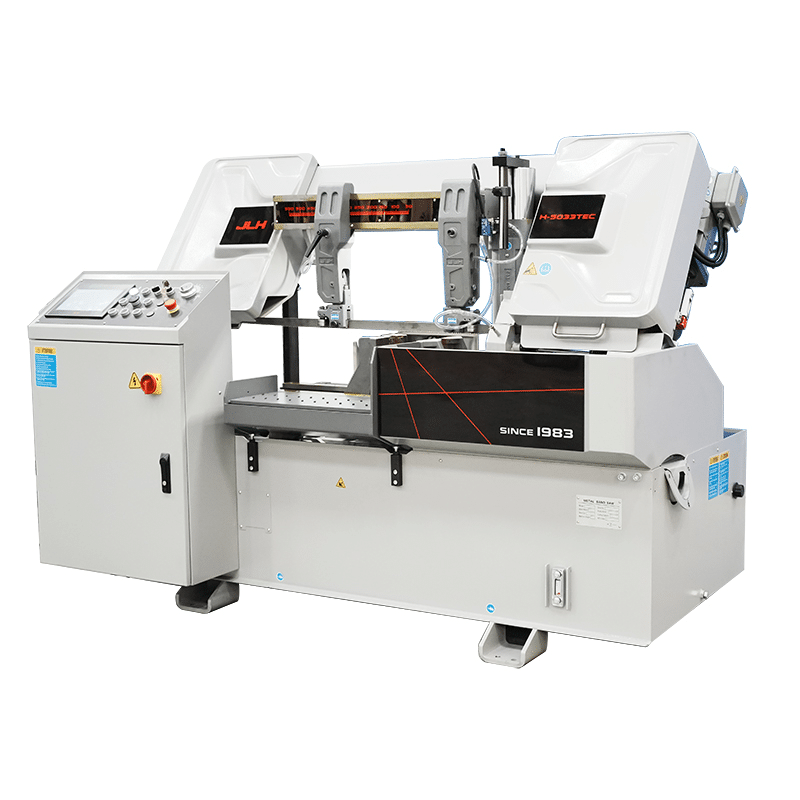

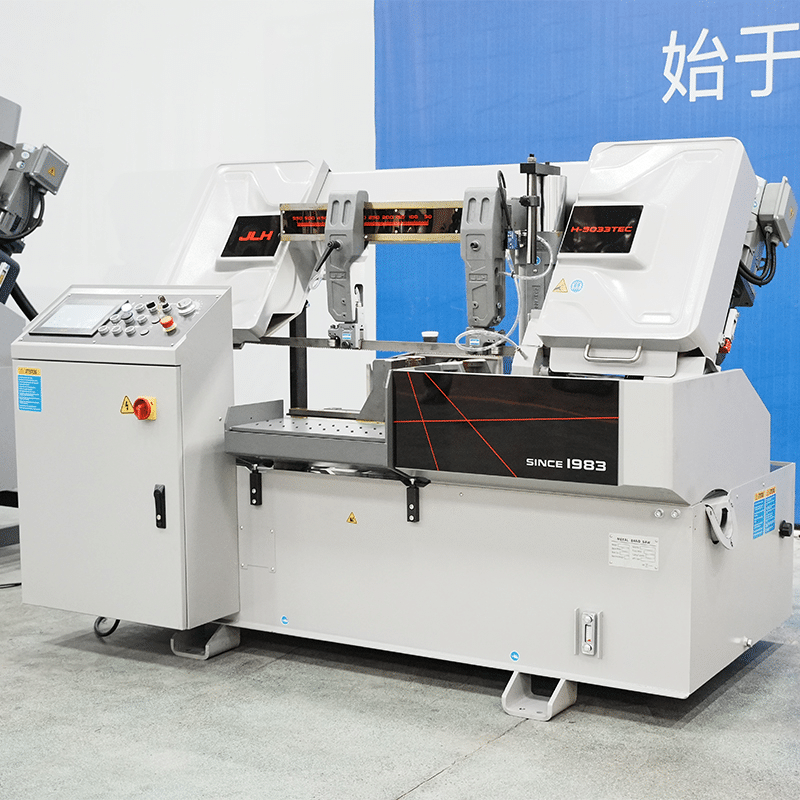

The H-5033TEC is the flagship product of the H-TEC Series, specifically designed for cutting large and difficult-to-process materials. This model is equipped with an advanced hydraulic system and high-precision cutting control technology, ensuring optimal results with every cut. Its robust structure and stable cutting capabilities make it the ideal choice for handling large materials.
The H-TEC Series as a whole demonstrates exceptional reliability and versatility, suitable for a wide range of industrial applications. Whether cutting steel, stainless steel, or other metal materials, the H-TEC Series ensures efficient and precise cutting processes through its powerful cutting capabilities and user-friendly control system.
These machines not only excel in performance but also offer outstanding durability and low maintenance costs. They are indispensable tools for companies seeking efficient production and superior quality.
| Specifications | H-5033TEC |
Cutting range round | φ330mm /φ13in |
Cutting range square (W x H) | 500*330mm 19.7*13in |
| Smallest size to be cut | 10*10mm 0.4*0.4in |
| Clamping range | 0-500mm/0-19.7in |
| Length | 1350mm/53.2in |
| Width incl. chip conveyor | 2710mm/106.7in |
| Height | 1760mm/69.3in |
Material support height | 750mm/29.5in |
| Total weight | ≈1600KG/3527lb |
| Total connected load | 6.2kw/8.27hp |
| Power of saw motor | 5kw/6.66hp |
| Hydraulic motor | 0.75kw/1hp |
| Cutting speed infinitely variable with | 20-80m/min 65.6-262.4ft/min |
| Saw feed speed | 1 – 300 mm/min 0.04-11.8In/min |
| Dimensions of saw blade | 4420*34*1.1mm 174 *1.3*0.04in |
| Functional description | H-5033TEC |
| Saw Master | ● |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |
Permanent Magnetic synch. Motor | ● |
Sawbow anti-collision detection | ● |
LED working light | ● |
Laser line projection | ○ |
Blade breakage detection | ● |
Sawing Depth Control | ○ |

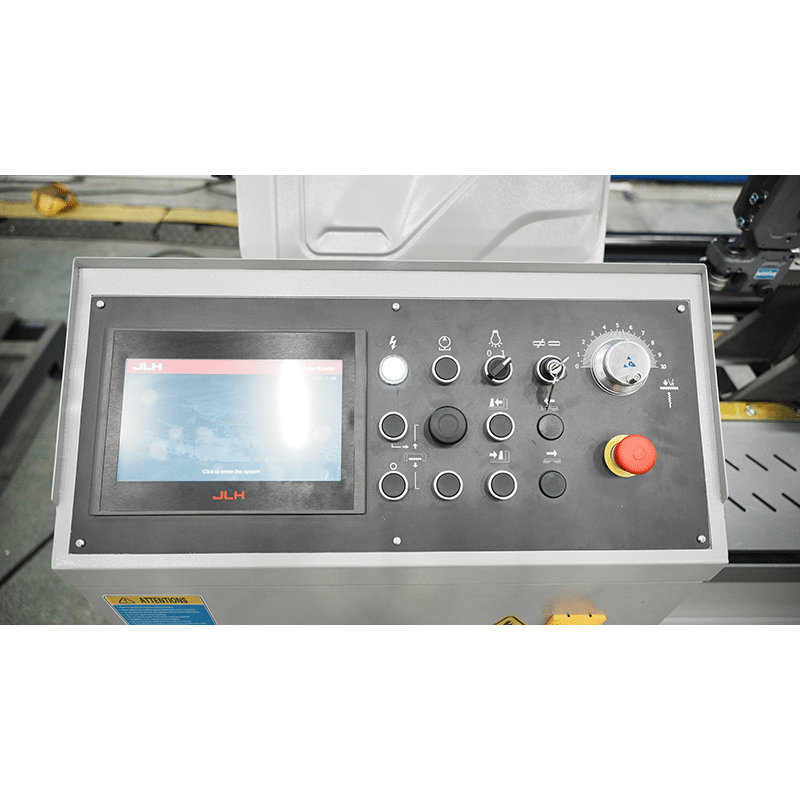

| HMI+Buttons | ● |
| Inverter | ● |
| Deviation detector | ○ |
| Hydraulic Blade tension | ● |
| Vise pressure differential valves | ● |
| Automatic chip conveyor (spiral) | ● |
| Hydraulic blade guide clamping | ○ |
| Vise pressure regulator | ● |
| Motorized chip brush | ● |
| Top clamp | ○ |
| Hydraulic cooling fan | ● |
| Main drive precision gear reducer | ● |
| Split Vise clamping | ● |
| Chip collection box 40(L) | ● |
| Chip collection box (movable) 70 (L) | ○ |
| Tool box (wire brush, levelling pads, spare paint) | ● |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
