TruTool S 450 Metal Shearing Tool

Our Price: $3,800.00

The TruTool S 450 is the largest and most powerful of the TRUMPF TruTool range of electrical-powered sheet metal cutting tools. It allows you to adjust its height easily to suit material thickness. The adjustment is tool-free and easy. With a simple turn of a knob, you can reset the height to enable you to cut metal sheets of different thickness gauges. This powerful tool guarantees you the highest quality processing even while cutting tough stainless steel!

SKU 2598633 Category

Benefits of The TruTool S 450 Metal Shearing Tool

With the TruTool S 450 shear you can set the sheet thickness without tools, even during cutting. The cutting tables made of high-strength steel and the precise position of the cutting table knives require a minimal amount of cutting force.

By selecting the TruTool S 450 you choose an extremely powerful shear with excellent flexibility in curves. With this tool, you obtain high-quality processing, even with stainless steel.

The most powerful shear in its class

  • Cutter height adjustment for material thickness is simple and tool-free
  • Easy-to-replace double-sided cutters
  • Powerful – even in stainless applications
  • An optional workstation is offered
  • Machine available as electic-version

Applications

  • Plumbers
  • Electrical fitters
  • Sanitary / Heating / Ventilation works
  • Container construction
  • Elevators
  • General sheet metal processing operations
  • Coil-application

DETAILED SPECIFICATIONS

TruTool S 450 (230V)TruTool S 450 (110V)
Max. material thickness
  • Steel 400 / mm²
4.5 mm4.5 mm
  • Steel 600 / mm²
3.5 mm3.5 mm
  • Steel 800 / mm²
2.5 mm2.5 mm
  • Aluminium 250 / mm²
5 mm5 mm
Working speed4 m/min – 6 m/min4 m/min – 6 m/min
Start hole diameter75 mm75 mm
Smallest radius R35 mm35 mm
Smallest radius L25 mm25 mm
Rated input power1400 W1140 W
Strokes at nominal load1600 RPM1400 RPM
Weight (electrical version: without cable, cordless version: with battery)6.2 kg6.2 kg
Accessories included
Cutterintegrated
Hand handle0139602
Hex head wrenchDIN 911-20002946
Hex head wrenchDIN 911-50067857
Carrying caseDIN 911-5Included
Grease gun (filled with “G1)1369906
Tube grease “G1”25 g0344969
Additional accessories
Cutter(set of 2, 0140451)
CR cutter(set of 2, 0140452)
Options (accessories)

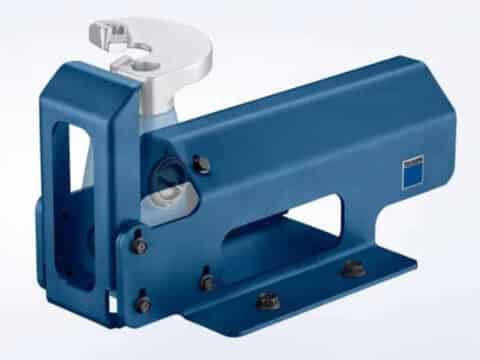

Work stationwith stand0918382
Work stationwithout stand0979371
Stand0003677
Lubricating grease “G1”900 g0139440

SERVICE MANUALS

Operators Manual
Spare Parts
Motor Parts

TRUMPF Cutting Shears

https://www.youtube.com/watch?v=n9kqI17vihI
