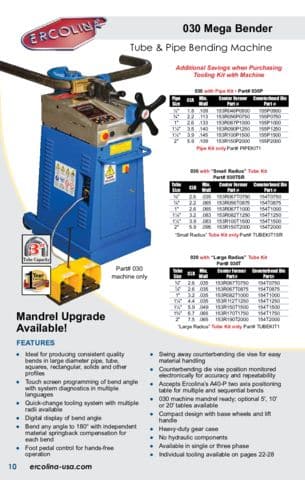

Ercolina MB030 Mega Bender

The Ercolina 030 Mega Bender is ideal for creating quality bends in pipe, tube, squares, solids and other profiles. The MB030 converts to a Mandrel Bender with accessory.

Key Features of the MB030 Mega Bender

  • Mild steel tube capacity 2-1/2″
  • Pipe capacity 2″ Sch. 40
  • Square tube capacity 2″
  • Maximum CLR 15″
  • Bend to CLR as small as 2D
  • Touch screen programming of bend angle with system diagnostics in multiple languages
  • Quick-change tooling system
  • Digital display of bend angle
  • Material springback compensation
  • Counterbending die positioning monitored electronically for accuracy and repeatability
  • Foot pedal control for hands-free operation
  • Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
  • No hydraulic components
  • All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.

CAPACITIES & SPECIFICATIONS

Tube (Min.)
          (Max.)

Pipe (Max.)

Centerline Radius (Min.)
                                (Max.)

Degree of Bend

Bending Speed

Programming

Voltage

Length, Width, Height

Weight

1/4 ”
2 1/2″

2″ Sch. 40

2 x Ø
15″

0 – 210°

Variable .6 to 2.2 RPM

Available

220V or 480V 3ph / 220V 1ph

27″ x 15″ x 36″

480 lbs.

PRODUCT INFO

For your convenience, there are instruction and service manuals for Ercolina Benders below. These manuals have been prepared for operators and maintenance personnel. It is important that all persons responsible for the care and operation of this equipment fully understand the information presented in this material. Manuals are shown for reference purposes only; please contact our Service Department with any questions or concerns.

030 Mega Bender Rotary Draw Bender
