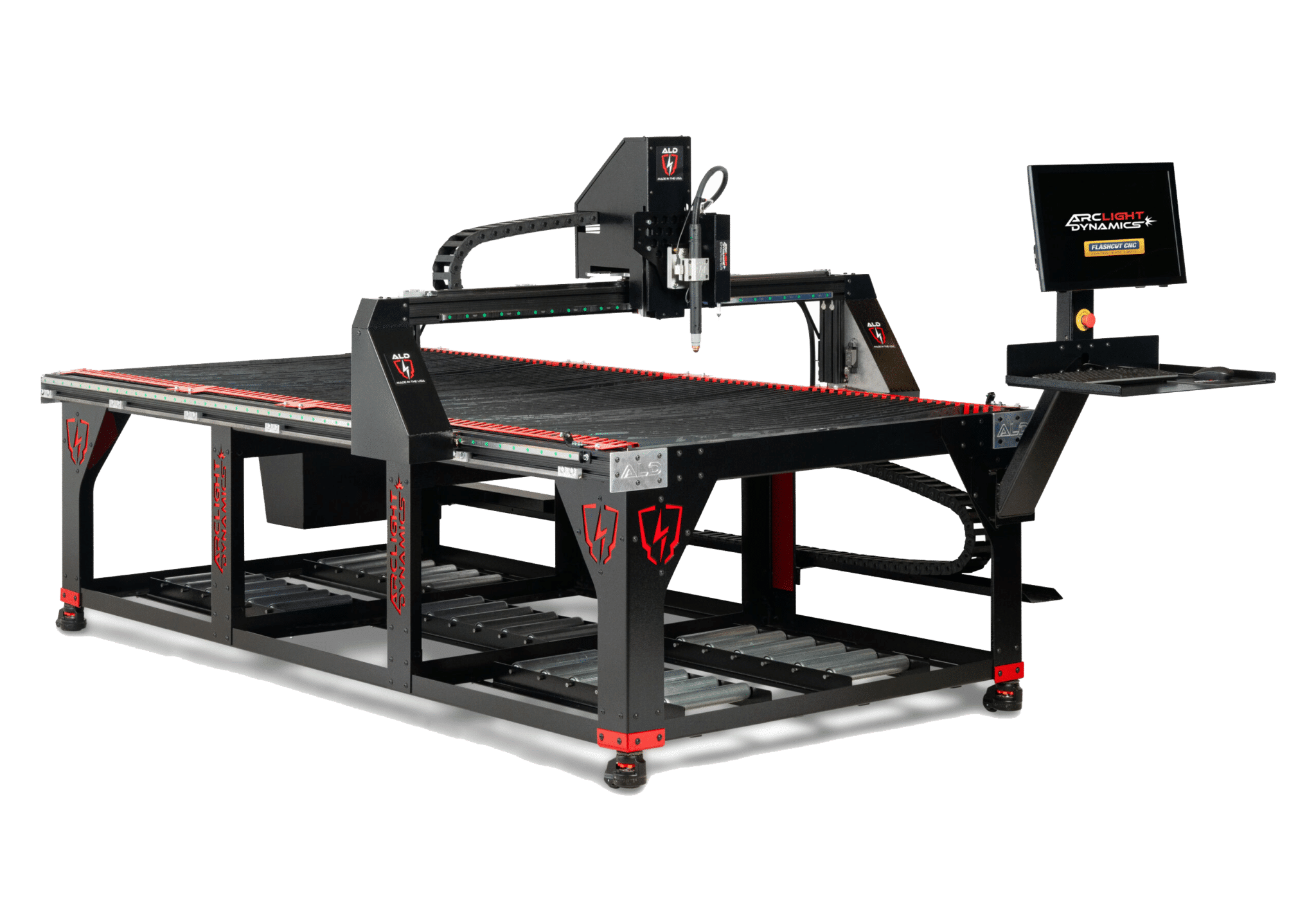

Introducing the Arc Pro V2 Elite CNC Plasma Cutting Table by Arclight Dynamics – a pinnacle of precision and power, expertly crafted in the USA. Boasting a robust steel frame, this industrial-grade machine guarantees stability and durability. Enhanced by the advanced Flashcut CNC controller software and CAD/CAM/CNC integration, the Arc Pro V2 Elite achieves unmatched precision in cuts.
The Flashcut CNC software interface is simple and easy to run allowing anyone to walk up to the machine a cut a part with minimal effort and training. In minutes you can set up the machine to design and cut parts, allowing the operator to complete other projects.
Designed for user-friendliness, the Arc Pro V2 Elite features an intuitive interface that streamlines operation, eliminating complex setups. This turnkey solution caters to both professionals and novices, ensuring optimal results effortlessly. Backed by a 3-year warranty, Arclight Dynamics demonstrates their commitment to excellence.
Beyond a mere table, the Arc Pro V2 Elite represents a comprehensive cut management system. Customizable accessories allow you to tailor the setup to your needs, maximizing productivity. Elevate your cutting capabilities today with the Arc Pro V2 Elite CNC Plasma Table and experience top-tier precision, reliability, and value in one exceptional package.
Modular Design
Grow your business with a new Arc Pro V2 Elite CNC Plasma Table. As you grow your table can grow with you, from 4×2 to 4×4 to 4×8 with a simple size upgrade kit.
Standard Performance Features
Go from Drawing to Toolpath to Cutting all in one.
- Integrated CAD/CAM/CNC Software FlashCut CAD’s intuitive user interface makes it simple to draw and edit any 2D and 2.5D shape
- Simple import of any 2D drawing Convert any bitmap image or photo into a toolpath (outline or centerline)
- Advanced true shape nesting includes nesting of multiple CAD or DXF files and multi-sheet nesting
- Shape library allows you to instantly draw and customize common shapes DXF export for sharing drawings with other CAD programs
- Fix tool finds and corrects CAD mistakes instantly
- Easily bridge internal cut outs such as the center of an “O”
The Arc Pro V2 Elite CNC Plasma Table by Arclight Dynamics features a precision-engineered steel frame that ensures exceptional stability and durability. This robust construction minimizes vibrations, allowing for smoother and more accurate cuts with tighter tolerances. Experience the precision and reliability of the Arc Pro V2 Elite’s steel frame, delivering professional-grade results with every cut.
The Arc Pro V2 Elite gantry is driven on both sides with two powerful motors. This dual drive eliminates gantry flex which allows for fast, clean, accurate cutting. This means:
- High clearance gantry comes standard
- Cleaner cuts (less clean up means more profit)
- More accurate cuts (less waste of material and time)
- Faster cut times (faster positioning between cuts reduces cut time dramatically)
- Uses precision bearings for minimal resistance and low maintenance
- Hiwin® 20 mm precision linear guide rails
- Provides super smooth motion for unmatched cut quality
- Dual seals and scrapers maintain a clean guideway for longer life and the best protection available
With advanced features like corner and hole slow downs, reverse cut directions, contouring, and additional option inputs, you will achieve superior cut quality through simple programming that is easy to understand and use.
The Arclight Plasma system allows for complete control of the cut: pause, fast forward, rewind and re-cut any part, virtually eliminating steel/materials waste. Our Computer Numerated Control (CNC) system provides a simple ‘click of the button’ control and operation or can operate with complex sophistication using personally generated g-code. CNC features that our competitors just don’t offer.
- Preloaded with Hypertherm cut charts and toolsets
- Ethernet based communications, for more reliable faster performance.
- Industrial Linux software for reliability and ease of use
- Torch Height Control with blazing fast response
- Dynamic Voltage Sampling
All-in-one leveling rollers are standard equipment with the Arc Pro V2 Elite CNC Plasma Table. Move your table and level it with ease.
Specifications
For the Arc Pro V2 Elite 4×8 CNC Plasma Table
- Cutting envelope: 51.5" x 104" x 6"
- Overall dimensions: 163” x 58” x 67”
- Weight capacity: 1.5" Thick Mild Steel
- Frame: Steel
- Dimensions at base: 72” x 120”
- Water pan capacity: 107 Gallons
- Table Power: 110V / 15-20A
- Overall Weight: 1,015 pounds
- Positioning Accuracy: .001"
