All tables ship fully tested and 98% assembled, making it easy to cut your first masterpiece. An initial training session and lifetime support are included with every table. An Arclight plasma table can provide the same cut quality as a table costing tens of thousands more. Our table has many of the same features you will find on much higher priced tables.
FlashCut CNC comes standard on all Arc Pro Elite tables. Decades of experience, superior features and tens of thousands of satisfied customers world-wide make FlashCut’s fully integrated CAD/CAM/CNC plasma control system among the best in the world.
Standard Performance Features
Go from Drawing to Toolpath to Cutting all in one.
- Integrated CAD/CAM/CNC Software FlashCut CAD’s intuitive user interface makes it simple to draw and edit any 2D and 2.5D shape
- Simple import of any 2D drawing Convert any bitmap image or photo into a toolpath (outline or centerline)
- Advanced true shape nesting includes nesting of multiple CAD or DXF files and multi-sheet nesting
- Shape library allows you to instantly draw and customize common shapes DXF export for sharing drawings with other CAD programs
- Fix tool finds and corrects CAD mistakes instantly
- Easily bridge internal cut outs such as the center of an “O”
Our steel and aluminum CNC frame generally weigh 2 to 4 times as much as our nearest competitor’s table. This weight combined with an engineered steel substructure and redundant cross bracing minimizes vibration and noise, which increases cut quality and table accuracy.
The Arc Pro gantry is driven on both sides with two powerful motors. This dual drive eliminates gantry flex which allows for fast, clean, accurate cutting. This means:
- High clearance gantry comes standard
- Cleaner cuts (less clean up means more profit)
- More accurate cuts (less waste of material and time)
- Faster cut times (faster positioning between cuts reduces cut time dramatically)
- Uses precision bearings for minimal resistance and low maintenance
- Hiwin® 20 mm precision linear guide rails
- Provides super smooth motion for unmatched cut quality
- Dual seals and scrapers maintain a clean guideway for longer life and the best protection available
With advanced features like corner and hole slow downs, reverse cut directions, contouring, and additional option inputs, you will achieve superior cut quality through simple programming that is easy to understand and use.
The Arclight Plasma system allows for complete control of the cut: pause, fast forward, rewind and re-cut any part, virtually eliminating steel/materials waste. Our Computer Numerated Control (CNC) system provides a simple ‘click of the button’ control and operation or can operate with complex sophistication using personally generated g-code. CNC features that our competitors just don’t offer.

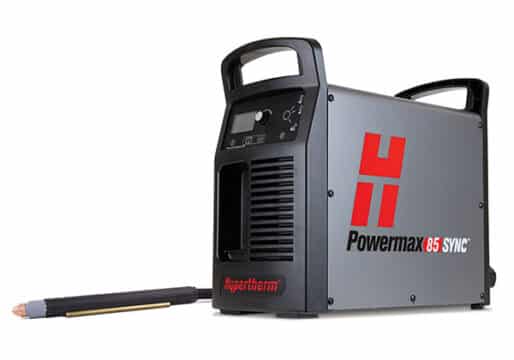

- Preloaded with Hypertherm cut charts and toolsets
- Ethernet based communications, for more reliable faster performance.
- Industrial Linux software for reliability and ease of use

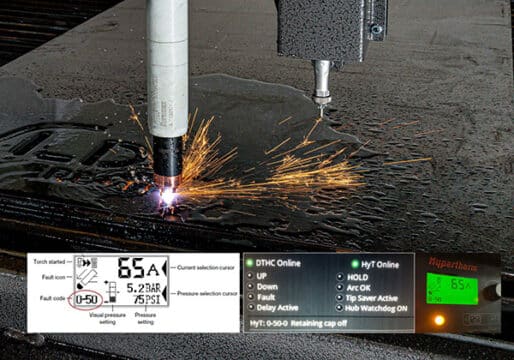

- Torch Height Control with blazing fast response
- Dynamic Voltage Sampling
- 4″ deep galvanized water pan
- Reduces thermal distortion
- Captures 90% of smoke and dust reducing airborne contaminants
- Cools parts quickly for immediate inspection
- Reduces heat affected zone
- 1.25″ ball valve drain
Specifications

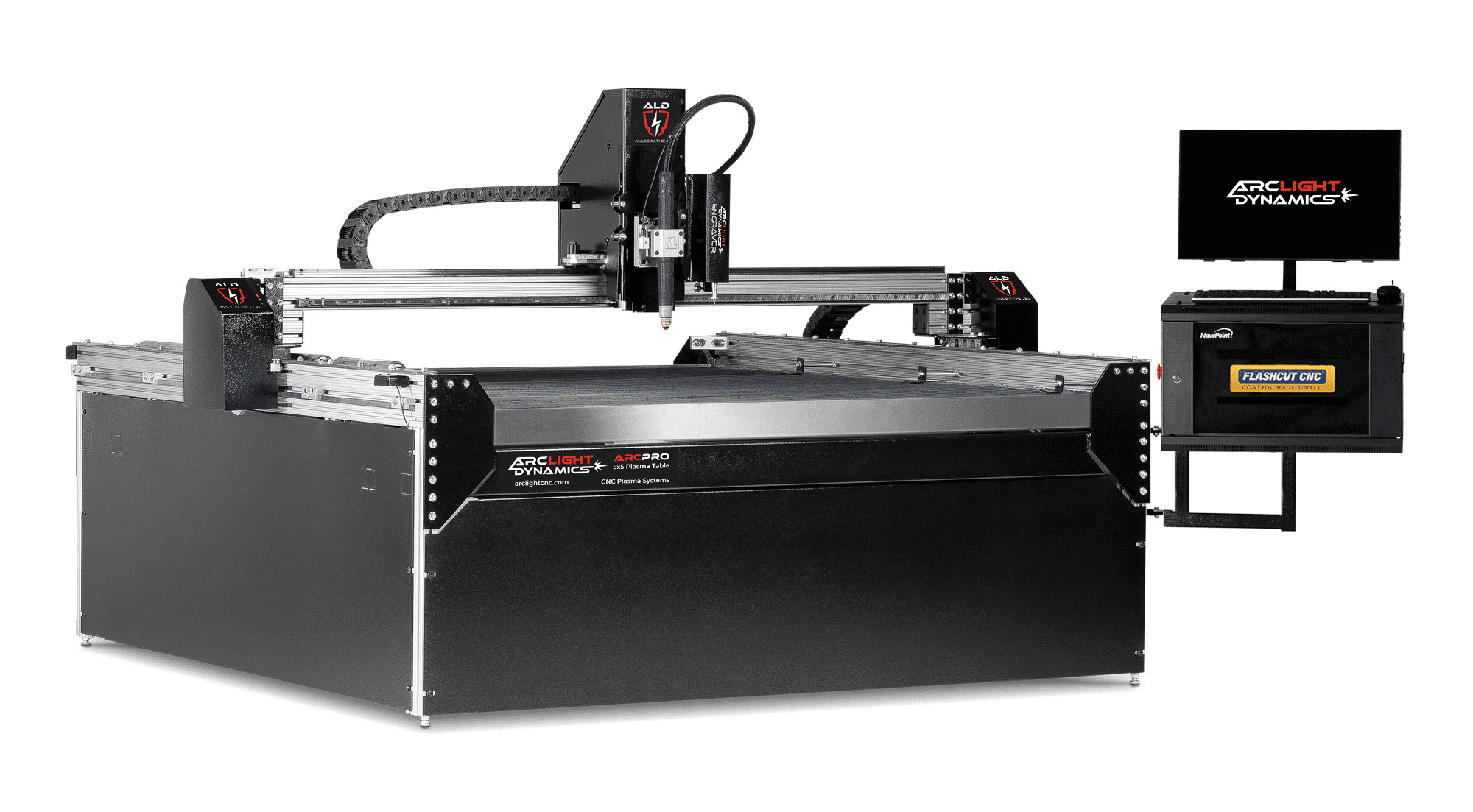

For the Arc Pro Elite 5×5 CNC Plasma Table
- Cutting envelope: 63” x 64” x 6.75"
- Overall dimensions: 87.5” x 80” x 58”
- Weight capacity: 1" Thick Mild Steel
- Frame: Hybrid Steel and Aircraft Grade Aluminum
- Dimensions at base: 73.5” x 79.5”
- Water pan capacity: 75 Gallons
- Table Power: 110V / 15-20A
- Overall Weight: 825 pounds
- Positioning Accuracy: .001"
