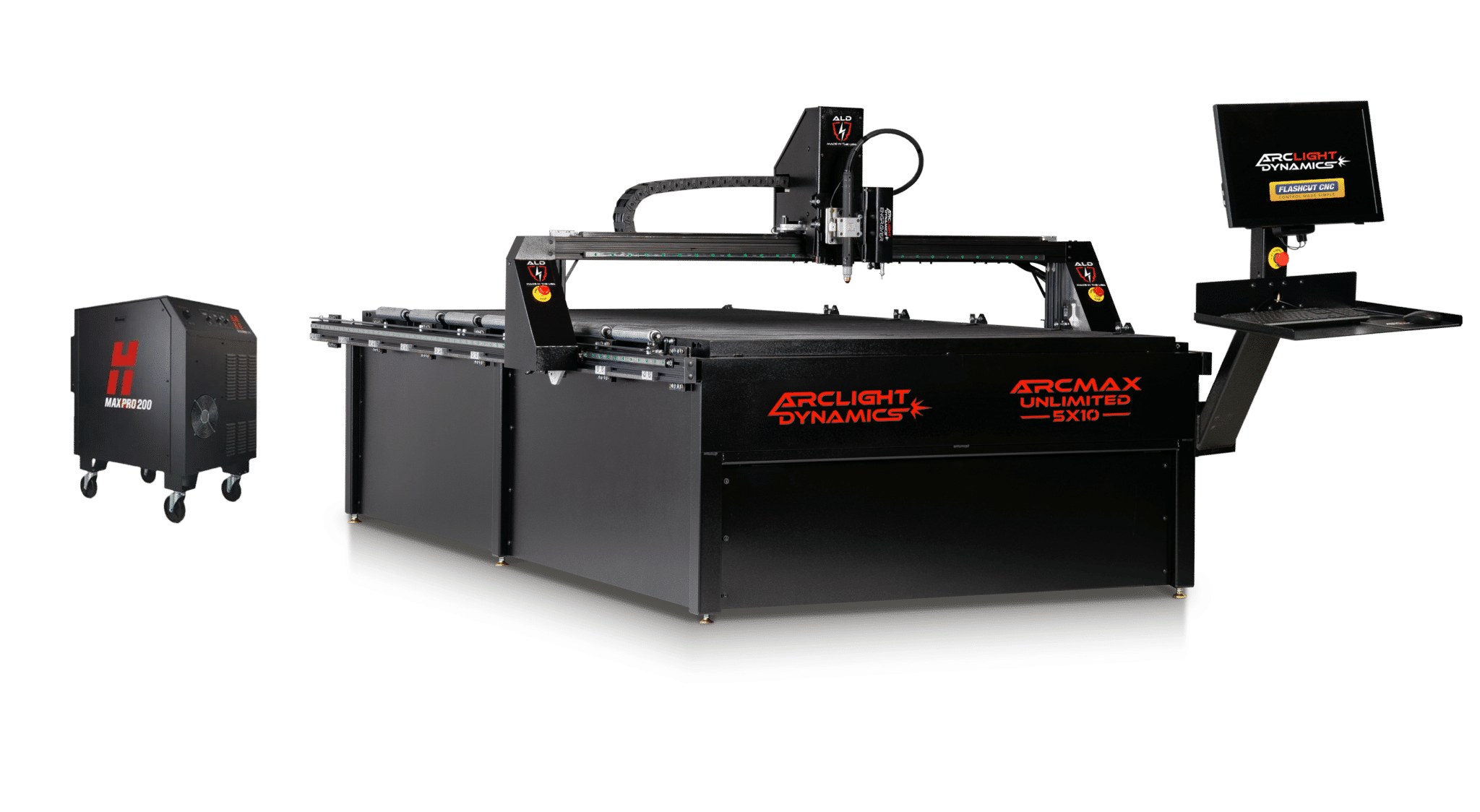

The Arc Max Unlimited is built on a reinforced, welded and unitized frame of thick steel tubing, allowing for heavy-duty cutting applications up to 3 inches thick (MS Plate). The precision-designed gantry is engineered from low mass aircraft grade aluminum, providing exceptional rigidity and first-class acceleration and deceleration characteristics; most desirable in high-performance CNC plasma tables.
FlashCut CNC comes standard on all Arc Max Unlimited tables. Decades of experience, superior features and tens of thousands of satisfied customers world-wide make FlashCut’s fully integrated CAD/CAM/CNC plasma control system among the best in the world.
The Unlimited Series CNC Plasma Tables are designed to easily change between Hypertherm MAXPRO200, Powermax 45, 65, 85, 105 or 125 Power Supplies or OxyFuel Cutting Processes. Capable of cutting a dynamic range of material from thin-gauge sheet metal through 3-inch thick plate with ease.
Compare Models
Features | Arc Max Unlimited | Arc Max Elite |
Starting at $35,995 | Starting at $26,995 | |
| Plate Capacity | 3 inch plate thickness | 2 inch plate thickness |
| MaxPro 200 Compatibility | ✅ | ❌ |
| Oxy-Fuel Compatibility | ✅ | ✅ |
| Slat Depth | 4.5 inches | 2.5 Inches |
| Controller | Flashcut CNC | Flashcut CNC |
| Integrated CAD/CAM/CNC | ✅ | ✅ |
| Automatic Nesting Software | ✅ | ✅ |
| Work-Piece Alignment | ✅ | ✅ |
| Rapids | 800 IPM | 800 IPM |
| Motors | Nema 34- 940 oz Stepper | Nema 34- 940 oz Stepper |
| Motor Cabling | XLR Quick Connectors | XLR Quick Connectors |
| Laser Alignment | Optional | Optional |
| Collision Detection | System Ready | System Ready |
| Hole Cutting | Smart 360® Hole Cutting Technology | SMART 360® HOLE CUTTING TECHNOLOGY |
| Serial Communication | ✅ | ✅ |
| Easy CAD/Image Import | ✅ | ✅ |
| CAD Error Fix Tool | ✅ | ✅ |
| CAD Feature Welding Tool | ✅ | ✅ |
| CAD-DXF Export | ✅ | ✅ |
| CAM 3D Cutting Simulation | ✅ | ✅ |
| CNC-THC Performance History Chart | ✅ | ✅ |
| CNC Automated Remanant Cut off | ✅ | ✅ |
| Ohmic & Mechanical Touch-Off | Both | Both |
| CNC Automatic Lead-in on Restart | ✅ | ✅ |
| Shop Arc Max Unlimited | Shop Arc Max Elite |
Standard Performance Features
Go from Drawing to Toolpath to Cutting all in one.
- Integrated CAD/CAM/CNC Software FlashCut CAD’s intuitive user interface makes it simple to draw and edit any 2D and 2.5D shape
- Simple import of any 2D drawing Convert any bitmap image or photo into a toolpath (outline or centerline)
- Advanced true shape nesting includes nesting of multiple CAD or DXF files and multi-sheet nesting
- Shape library allows you to instantly draw and customize common shapes DXF export for sharing drawings with other CAD programs
- Fix tool finds and corrects CAD mistakes instantly
- Easily bridge internal cut outs such as the center of an “O”
The Arc Max Unlimited frame is designed specifically to hold up to 3 inch Mild Steel Plate across its entire cutting envelope.
- 3″ by 3″ steel tubing
- 3/16″ thickness wall steel tubing
- Fully welded unitized frame
- Gusseted Legs
- Powder coated frame
- Provides a rock solid base for fast accurate cutting
- Slat surface flush with side of table with built in rollers to assist in loading plate
- Fast acceleration and deceleration
- Combination of High Mass Frame and Low Mass Gantry leads to excellent acceleration and deceleration qualities without vibration or noise, resulting in accurate and smooth plasma cuts.
- 8.5″ clearance
- Hiwin® 20 mm precision linear guide rails
- Provides super smooth motion for unmatched cut quality
- Dual seals and scrapers maintain a clean guideway for longer life and the best protection available
- 8 1/2″ deep 12g steel water pan
- Expanded metal barrier to catch small parts
- Reduces thermal distortion
- Longer runtime before annual cleaning
- Captures 90% of smoke and dust reducing airborne contaminants
- Cools parts quickly for immediate inspection
- Reduces heat affected zone
- Twin 1.25″ ball valve drains
Specifications
FOR THE ARC MAX UNLIMITED 5×10 CNC PLASMA TABLE
- Cutting envelope: 62" x 124" x 6.5"
- Overall dimensions: 88”L x 143”W x 60”H
- Weight capacity: 6,235 pounds
- Frame: Reinforced and Fully Welded Steel
- Positioning Accuracy: .001"
- Dimensions at base: 70" x 133"
- Water pan capacity: 300 Gallons
- Table Power: 110V / 15-20A
- Overall Weight: 3250 pounds
- Controller: Flashcut CNC
